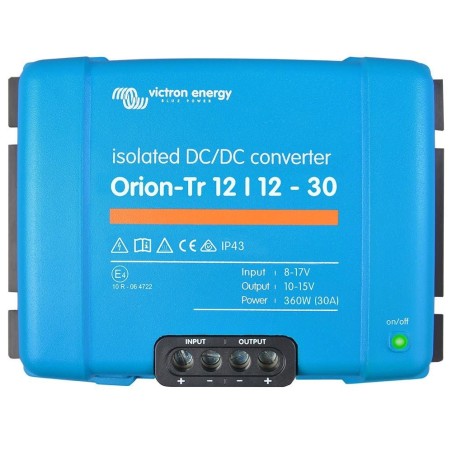

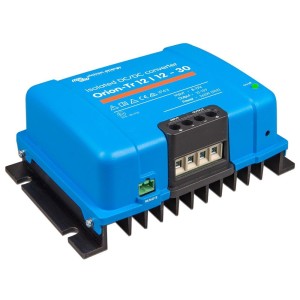

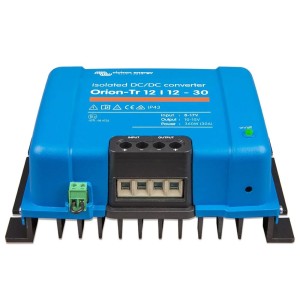

Victron Energy Orion-Tr 12/12-30 12V 30A 360W Isolated DC-DC Charger
The Orion-Tr 12/12-30 from Victron Energy is a galvanically isolated DC-DC voltage converter and provides regulated DC voltage for trouble-free operation of your DC loads. The compact Orion-TR DC-DC voltage converter converts DC input voltage (10-17V) to a regulated 12V output voltage (10-15V) and delivers a constant continuous current of 30A, which is equivalent to 360W of power.
Thanks to the Orion-Tr 12/12-30, you can supply any 12V load with exactly the right voltage. The correct voltage is guaranteed even with longer lines, because the Orion can adjust the voltage to any line losses that occur. For many sensitive electronic devices, maintaining the exact operating voltage is essential for smooth operation. Furthermore, the Orion-Tr 12/12-30 can be connected in parallel with identical devices and has a remote-controlled on/off switch.

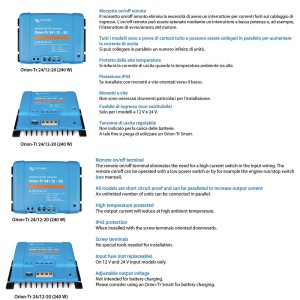

Remote on/off terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch.
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12 V and 24 V input models only.
Adjustable output voltage
Not intended for battery charging. Please consider using an Orion-Tr Smart for battery charging.

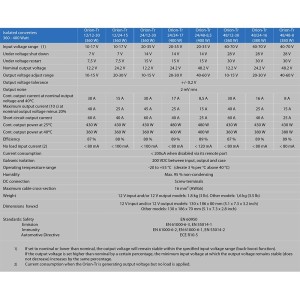

Features:
Model: Orion-Tr 12/12-30 Isolated;
Input voltage range(1): 10-17 V;
Under-Voltage Shutdown: 7 V;
Under voltage restart: 7.5 V;
Rated output voltage: 12.2 V;
Output voltage regulation range: 10-15 V;
Output voltage tolerance: +/- 0.2V;
Output Noise: 2 mV rms;
continuous current output at nominal output voltage and 40 ºC: 30 A;
Maximum output current (10 sec.) at nominal output voltage minus 20 %: 40 A;
Short circuit output current 60 A;
Continuous power output at 25ºC: 430 W;
Continuous output power at 40ºC: 360 W;
Efficiency: 87%;
Without load current at the load input: < 80 mA;
Current consumption: < 200uA when disabled via its remote port;
Galvanic Isolation: 200 VDC between input, output and case;
Operating temperature range: -20 to +55 ºC (3 % reduction per °C above 40 °C);
Humidity: Max. 95% non-condensing;
DC connection: Screw terminals;
Maximum cable cross section: 16 mm² (AWG6);
Weight: 1.8 kg (3 lbs);
Dimensions HxWxD: 130x186x80 mm (5.1 x 7.3 x 3.1 inches);
Protection category: IP43 (electronic components), IP22 (connection area);
Standards: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5.
