24V 2kW Photovoltaic Kit with 3kVa Inverter 2560Wh LiFePO4 Battery
Solar Kit consist of 5 410W monocrystalline silicon photovoltaic panels, Victron EasySolar-II GX Inverter All-in-One 24V 3kVA MPPT 250/70 GX and two WANROY 12V 100Ah LiFePO4 Batteries With 100A BMS 12.8V 1280Wh for Off-Grid systems with grid support.
For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.

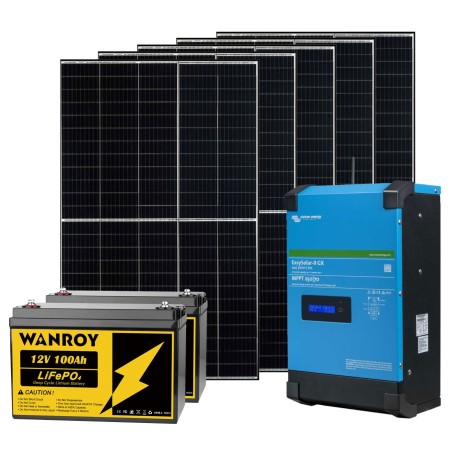

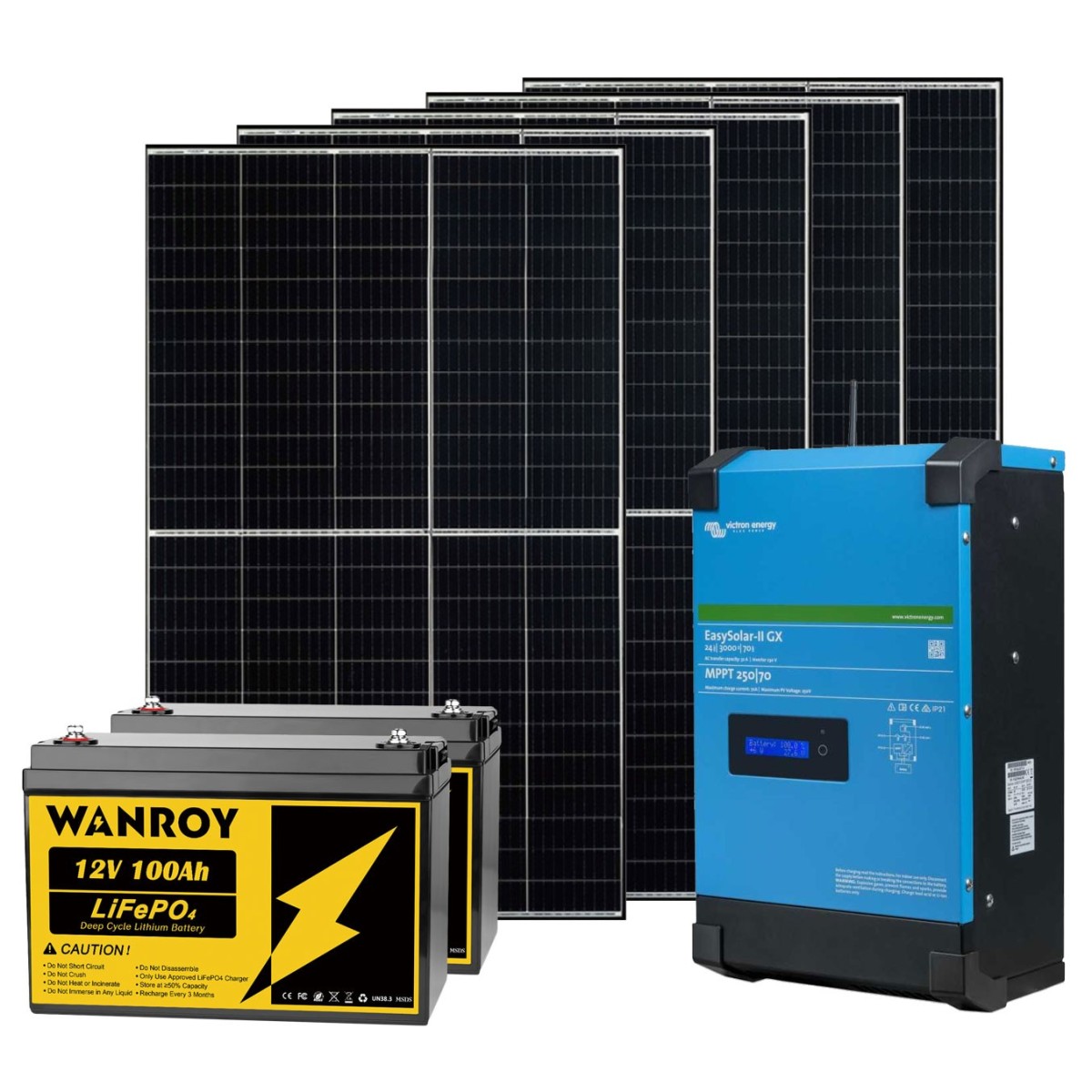

The kit contains:
- n°5 410W monocrystalline silicon photovoltaic panels #N151030050303-8;
- n°1 Victron EasySolar-II GX Inverter All-in-One 24V 3kVA MPPT 250/70 GX #UF21876P;
- n°2 WANROY 12V 100Ah LiFePO4 Battery With 100A BMS 12.8V 1280Wh #N150520017370.

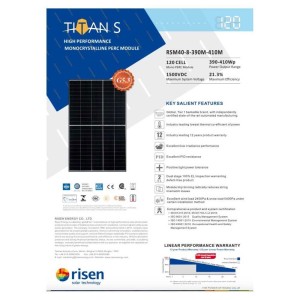

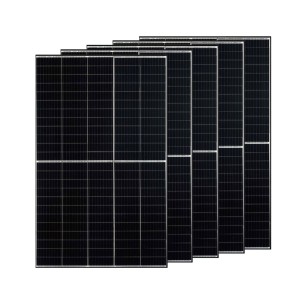

Set of 5 410W Monocrystalline photovoltaic solar panels
The 410W solar module is a high-efficiency black-white frame monocrystalline solar module with half-cut technologies, which consists of halving the cells. Efficiency of up to 21.3% thanks to superior cell technology and cutting-edge production methods. This technology reduces thermal resistance and increases power output by 5 to 10 Wp. Self-cleaning glass. Powerful module with low irradiance even in low light conditions (morning or cloudy).
• High efficiency monocrystalline technology
• Low current density technology to effectively reduce internal power consumption.
• MBB and HC technology to reduce negative affect from yielding caused by micro cracks and shadows.
• High power output leads to lower BOS cost.
Global, Tier 1 bankable brand, with independently certified state-of-the-art automated manufacturing. Industry leading lowest thermal coefficient of power. Industry leading 12 years product warranty. Excellent low irradiance performance. Excellent PID resistance. Dual stage 100% EL inspection warranting defect-free product. Module Imp binning radically reduces stringmismatch losses. Excellent wind load 2400Pa and snow load 5400Pa under certain installation method.

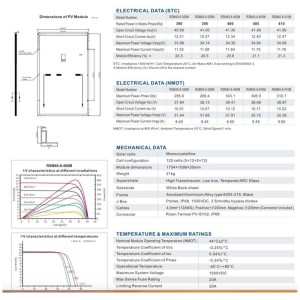

Specification:
Model: RSM120-8-410M-B-TW;
Nominal Power: 410 W;
Cell Type: Monocrystalline;
Number of cells in series: 120 (5x12+5x12);
Open-circuit Voltage (Voc): 41.90 V;
Maximum Power Voltage (Vmp): 34.89 V;
Short-circuit Current (Isc): 12.47 A;
Maximum Power Current (Imp): 11.76 A;
Max System Voltage: 1500 V DC;
Module Efficiency: 21.3 %;
Frame: anodizedaluminium alloy;

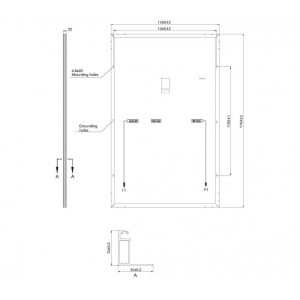

Dimension: 1754x1096x30 mm;
Weight: 21 kg.

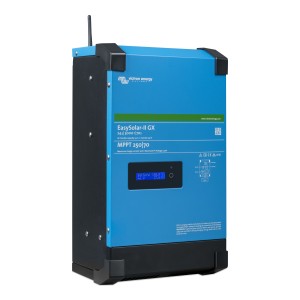

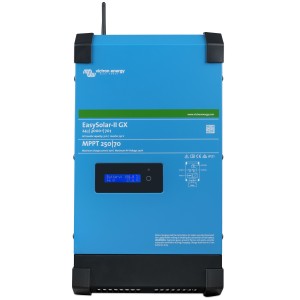

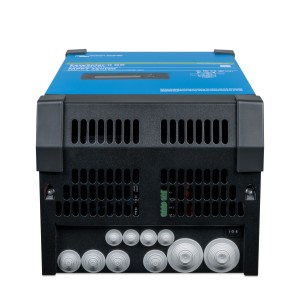

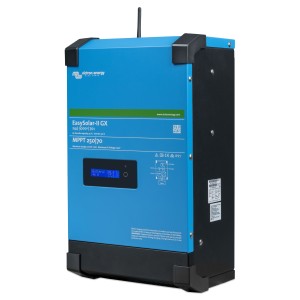

n°1 Victron EasySolar-II GX Inverter All-in-One 24V 3kVA MPPT 250/70 GX
All-in-One Inverter Victron EasySolar-II GX 24/3000/70-32 with SmartSolar MPPT 250/70-Tr charge controller for the all-in-one solar energy solution for both stand-alone and hybrid PV systems with mains or generator AC input.
This inverter with display allows you to create an OFF GRID photovoltaic system up to 2000W for recharging the 24V battery bank and using 230V alternating current with an additional 230V AC input for emergency generator or grid manager. The ALL in ONE inverter is the simplest system for creating a stand-alone system with automatic exchange with the grid (or emergency generator), all components that usually make up a classic stand-alone photovoltaic system (charge regulator, inverter, exchange and battery charger). With this inverter you can always use renewable sources, therefore solar energy, energy stored in the battery and only in the absence of the two renewables, the inverter automatically switches to the AC emergency input of the generator or grid manager; This system allows you to have the maximum economic savings in bills or even to completely eliminate the connection with the network manager.
The all-in-one solar power solution
The Victron EasySolar-II GX integrates the following elements:
• A MultiPlus-II inverter/charger
• A SmartSolar MPPT 250/70-Tr solar charge controller
• A GX device with a 2 x 16-character display.
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.
Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device. In addition, Wi-Fi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger. The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device
The integrated GX device includes:
• A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
• A USB port
• An Ethernet port
• A VE.Direct port
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.

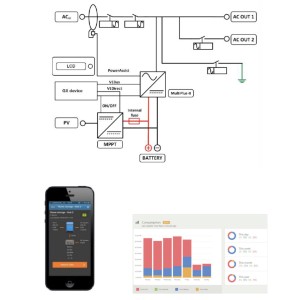

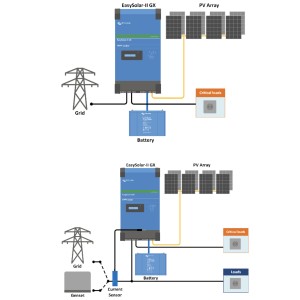

Grid in-line topology
The EasySolar-II GX will use excess PV power to charge the batteries or to feed power back into the grid and will discharge
the battery or use power from the grid to supplement a shortage of PV power. In case of a power outage, the EasySolar-II GX will disconnect the grid and continue to supply the loads. Loads that should shut down when AC input power is not available can be connected to a second output (not shown). These loads will be taken into account by the PowerControl and PowerAssist function in order to limit AC input current to a safe value.
Grid parallel topology
The EasySolar-II GX will use data from the external AC current sensor (must be ordered separately) or power meter to optimise self-consumption and, if required, to prevent grid feed. In case of a power outage, the EasySolar-II GX will continue to supply the critical loads.
Current sensor 100A:50mA
To implement PowerControl and PowerAssist and to optimise self-consumption with external current sensing.
Maximum current: 50 A resp. 100 A.
Length of connection cable: 1 m.
Technical specifications
PowerControl & PowerAssist: Yes
Transfer switch: 32A
Maximum AC input current: 32A
Auxiliary output: Yes (32A)
INVERTER
Input voltage range: 19-33V
Output voltage: 230 VAC ± 2%
Frequency: 50Hz ± 0.1% (1)
Cont. output power at 25 °C (3): 3000 VA / 2400 W
Cont. output power at 40 °C/65 °C: 2200 W / 1700 W
Maximum apparent feed-in power: 2470 W / 3000 VA
Peak power: 5500W
Maximum efficiency: 94%
Zero load power: 13W
Zero load power in AES mode: 9W
Zero load power in search mode: 3W
CHARGER
AC Input: Input Voltage Range: 187-265VAC
AC Input: Input frequency: 45 - 65Hz
Absorption charge voltage: 28.8V
Float charge voltage: 27.6V
Storage mode: 26.4V
Maximum battery charge current (4): 70A
Battery temperature sensor: Yes
Programmable relay (5): Yes
Protection (2): a - g
VE.Bus communication port: For single-phase parallel and three-phase operation, remote monitoring and system integration
General purpose com. port: Yes, 2x
SMARTSOLAR CHARGE CONTROLLER
Model: SmartSolar MPPT 250/70-Tr
Maximum output current: 70A
Maximum PV power: 2000W
Maximum PV open circuit voltage: 250V
Maximum efficiency: 99%
Self-consumption: 20mA
Absorption charge voltage, default: 57.6V
Float charge voltage, default: 55.2V
Protection (2): a - e
GENERAL
Interfaces: VE.Can, USB, Ethernet, VE.Direct, wifi
Remote ON-OFF: Yes
Operating temp. range: - 40 to + 65 ° C (fan assisted cooling) Max. altitude 2000 m
Humidity (non-condensing): max 95%
Material and colour: aluminum (blue RAL 5012)
Protection category: IP21
Battery-connection: M8
PV connection: M6
230 V AC-connection: 16 mm/ 6 AWG screw terminals
Weight: 26 kg
Dimensions (HxWxD): 499x268x237 mm
Safety: EN-IEC 60335-1, EN-IEC 60335-2-29 EN-IEC 62109-1, EN-IEC 62109-2
Emission / Immunity: EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3

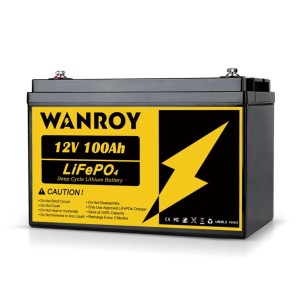

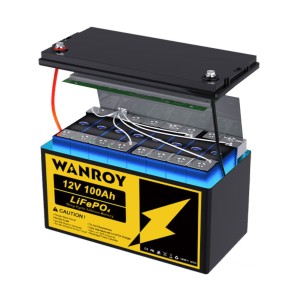

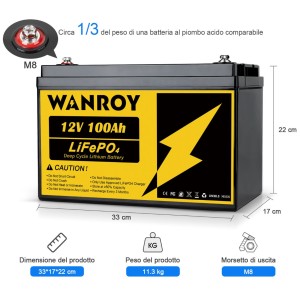

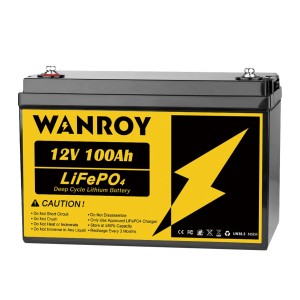

n°2 WANROY 12V 100Ah LiFePO4 Batteries with 100A BMS 12.8V 1280Wh
Made with the safest lithium iron phosphate battery technology, the Wanroy LiFePO4 12V 100Ah Batteries offer exceptional durability and a longer life cycle. What is surprising is the possibility of carrying out over 3000 charge and discharge cycles, guaranteeing use for at least 10 years. Equipped with a battery management system (BMS), it is able to operate efficiently while ensuring safety and reliability.
Lighter, smaller, more powerful
The Wanroy Batterie LiFePO4 12V 100Ah is lighter, more compact and more powerful! The slim design makes it light and practical, while its core holds long-lasting and powerful energy. With a high capacity of 100 amps/hour, it will accompany you freely without fearing energy exhaustion anymore.
The importance of the battery management system (BMS)
To protect your battery pack, ensure a stable energy supply and offer you excellent energy management, our Battery Management System (BMS) is here to support you. From everyday needs to special situations, our BMS offers comprehensive protection for lithium battery packs, ensuring a stable case for your power needs.
• Integrated battery management system
• After 3000 cycles with 80% DOD, 80% capacity still remains
• Lifespan of at least 15 years without the need for maintenance
• Fully-fledged replacement for lead-acid batteries
• Eco-friendly, lead-free, acid-free
• Compatible with Victron Energy, Growatt, Green Cell, etc.
Smart long-term solution
Despite the higher price, LiFePo4 batteries are characterized by much lower operating costs, which means that the purchase pays for itself very quickly. Over its lifetime, a LiFePo4 battery costs more than 100% less than a standard AGM battery, making it a worthwhile investment and a smart long-term solution.
Electrical performance:
Battery technology: LiFePO4 (Lithium Iron Phosphate)
Nominal tension: 12 V
Capacity (Ah): 100 Ah
Maximum continuous load power: 1280 W
Nominal energy: 1280 Wh
Capacity: 100%
Cycle time: >3000 cycles
Lifespan: >15 years
Charge/Discharge performance:
Charging voltage: 14.4 V (maximum 14.6 V)
Maximum continuous charge/discharge current: 100 A
Peak discharge current @10S: 250 A
Performance in temperature:
Discharge Temperature: -20 ~ +60 °C
Charge Temperature: 0 ~ +45 °C
Storage Temperature: -5 ~ +35 °C
High Temperature Cut-Off: 65 °C
Mechanical performance:
Terminal Type: M8
Terminal Torque: 80 ~ 100 in-lbs (9 ~ 11 N-m)
Terminal pole: F12 (M8 internal thread)
Case Material: ABS
Enclosure Protection: IP65
Dimension (LxWxH): 330x170x220 mm
Weight: 11.3 kg.
