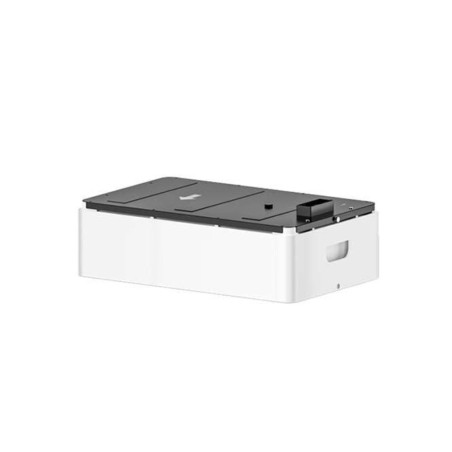

Goodwe LYNX HOME F Plus+ 3.3kWh Lithium Battery Module without BMS
The GoodWe Lynx Home F Plus+ 3.3kWh series High Voltage Battery is a perfect match and highlight of GoodWe's one-stop-shop energy storage solution that realizes remote monitoring of the entire energy storage system with a single app . It offers a wide capacity range from 6.6 kWh to 16.4 kWh and the parallel connection expandable up to 8 towers allows for a maximum capacity of 131 kWh. Therefore, it provides comprehensive energy storage options to meet the most demanding project requirements, from optimizing self-consumption to using backups. The stackable modules with automatic detection make the system particularly easy to install and maintain. The reliable lithium iron phosphate (LFP) battery cell technology ensures maximum safety and a longer life cycle. Furthermore, Lynx Home F PLUS+ is compatible with GoodWe BH/EH/BT/ET inverters. Get ready with the Lynx Home F PLUS+ series for robust energy storage for your life. BMS (Battery Management System) not included.
Technical data:
- Usable capacity: 3.3 kWh;
- Nominal voltage: 115 V;
- Storage type: High Voltage;
- Operating temperature: -20°C ~ + 45°C;
- Relative humidity: 0% ~ 95%;
- Degree of protection: IP 55;
- Cell technology: lithium iron phosphate (LiFePO4);
- Dimensions (W×H×D): 600×155×380 mm;
- Weight: 43 kg.
Standards and certifications
- Safety: IEC62619, IEC62040, VDE2510-50, CEC, CE;
- EMC: CE, RCM;
- Transport: UN38.3
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
