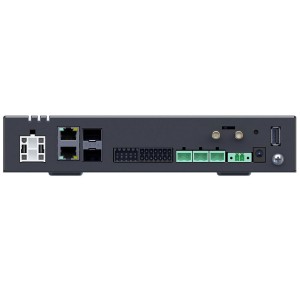

Huawei SMART LOGGER 3000A01EU MPN 02312SCU-004
Remote monitoring of active and reactive power
The SmartLogger applies to a photovoltaic system. It can monitor Huawei inverters, PID and other devices. It supports third-party devices such as inverters, environmental monitoring instruments, box transformers and smart meters that use the standard Modbus protocol or provide RS485 ports.
It can simultaneously connect to Huawei network management and third-party systems using Modbus-TCP and IEC104 protocols.
It can connect to a multifunctional power meter on DLT645.
Max. reliable communication range of 1,000 m
• Intelligent design with zero export control
• Easy to install on site
• Safety with lightning protection module
Product Features:
- 3000A01EU intelligent recorder
- Max. 80 devices manageable
- Installation via FusionSolarApp or notebook
- Built-in web server
- Communication via RS485, Ethernet and 4G
- MBUS: MBUS x 1, 115.2 kbps, PLC compatible
- Operating temperature range: -40 ~ +60 °C
- Relative humidity: 5% RH~ 95% RH
- Operating altitude: max. 4,000 m
- Power consumption: typical 8 W, maximum 15 W
- Display: 3 x LED
- Communication: RS485, Ethernet, 2G/3G/4G
- Weight: 2 Kg
- Dimensions (without mounting brackets and antenna):
- Dimensions: 225 x 160 x 44 mm
- Protection class: IP20
- MPN: 02312SCU-004
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
