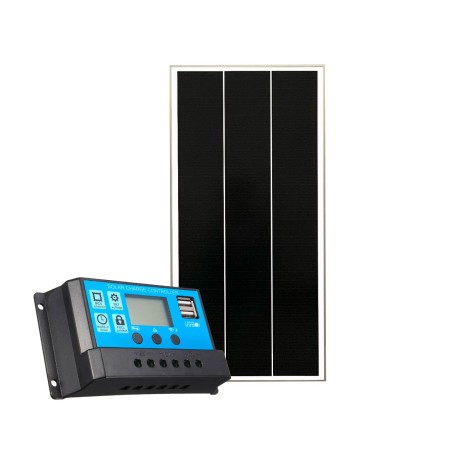

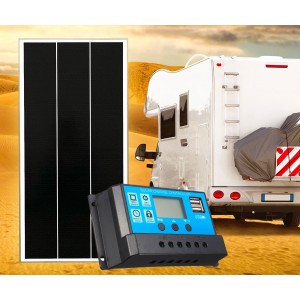

12V 100W Photovoltaic Kit with 12/24V 10A PWM Solar Charger
12V 100W Photovoltaic Kit complete with 100W photovoltaic module and 12/24V 10A PWM charge controller for stand-alone PV sy-stems, remote houses, camper vans, boats, industrial applications, lighting systems, road signs, TVCC systems and much more.
The kit is made by:
- 1 100W 12V Monocrystalline Photovoltaic Module 36M #N52330050176;
- 1 10A 12/24V PWM Solar Charge Controller #N52830550702.
100W 12V Monocrystalline photovoltaic module
Designed for the rural electrification, data survey, telecommunication and special applications. Thanks to its versatility, the panel is very popular and used both in developing countries as well as the European market. Furthermore every single cell and module produced have been tested and checked several times throughout the manufacturing process. The interconnections between panels are easy, practical and optimized for every configuration and voltage. Robust construction and heavy duty anodized aluminium frame design makes this module suitable, safe, simple and fast to be installed in many situations.
Prevent the loss of electricity: used on the roof of the car, charge the car battery at any time. Can prevent the car battery from losing electricity, and solve the situation that the car cannot be fired due to the battery loss caused by the long-term parking of the vehicle.
Elettrodomestici di bordo: quando si utilizzano gli elettrodomestici di bordo, la potenza originale della batteria dell'auto non si perde (audio per auto, navigatore, registratore di guida, aspiratore, ventilatore per auto, frigorifero per auto, cellulare, ecc.).
Features:
- High module conversion efficiency.
- The efficiency of high-quality and high-efficiency monocrystalline silicon wafers can reach 18.92%.
- Excellent performances even during low solar radiation (cloudiness, morning or evening).
- Solar-grade tempered prismatic glass.
- High-quality cells and partial-cell design lower series resistance and reduce power degradation.
- Strict and continuous quality controls during all the production phases up to shipment.
- A-grade solar cells.
- Anti-corrosion EVA effectively protects the battery panel.
- Strong and anti-wind and snow, unique technology to avoid freezing of water in the frame and deformation.
- Lightweight and flexible features can make it seamlessly integrated into your vehicle.
- The integrated bypass-diodes allow the panel to work when partially shaded.
- IP67 rated junction box, reliable cables and standard MC4 connectors improve the stability.
Technical data:
- Model: SZ-100-36M;
- Peak power: 100W;
- Cell type: Monocrystalline;
- Cell Efficiency: 18.92%;
- Cell configuration: 36 monocrystalline silicon cells;
- Vmp: 19.86V;
- Imp: 4.46A;
- Voc: 26.40V;
- Isc: 4.97A;
- Maximum system voltage: 1000V;
- Output tolerance: + 3%;
- Cable: 500 mm / 2.5 mmq;
- Connector type: MC4 / MC4 compatible;
- Model structure: Aluminum frame, glass, EVA, white backsheet;
- Junction box classified ≥IP67;
- Number of Diodes: 1;
- Working temperature: -40°C ~ +80°C;
- Size: 1190x450x30 mm;
- Weight: 6.30 kg.
Mechanical Data:
Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃.
Note: Pv module provided with cable MC4 connectors. If the distance between the PV module and charge controller is less than 10 mt, we recommend using 4 mm2 cable; If the distance between the PV module and charge controller is more than 10 mt, we recommend using 6 mm2 cable.
10A 12-24V PWM Solar charge controller
PWM Charge Controller for 12-24 Volt photovoltaic systems, equipped with display LCD and USB output. Ideal for charging GEL, AGM or acid batteries via traditional 36 cell photovoltaic panels for 12V systems and 72 cells for 24V systems. Charges batteries in boats, RVs, cabins and alarm systems.
The Charge Controller is an electronic device, where, in an island photovoltaic system, it has the function of optimally charging the batteries without causing them to be damaged and of being able to supply the loads connected to it with a constant voltage (the battery must always be connected).
It is mostly composed of an input for the photovoltaic solar panel, an output for the battery and an output for the load to be powered (The maximum allowed load is 10A, if you have to connect larger loads they must be connected directly to the battery).
Features:
- Model: Kw1210;
- Battery voltage: 12V (130W) - 24V (260W);
- Charge current: 10A;
- Discharge current: 10A;
- Maximum PV voltage: 50V;
- Max Solar input:
- 12V battery, the highest 23V
- 24V battery, when the highest 46V
- Equalization: B1 sealed 14.4V;
- Float charge: 13.7V;
- Discharge stop: 10.7V;
- Discharge reconnect: 12.6V;
- Charge reconnect: 13V;
- USB output: 2 way output, 5V/2.5 Max;
- Self-consume: <10mA;
- Operating temperature: -35 + 60°C;
- Type: Stand Alone, Boat, Camper;
- Battery type: AGM, GEL, FLOODED;
- Size: 133.5x70x35 mm;
- Weight: 165 g.
