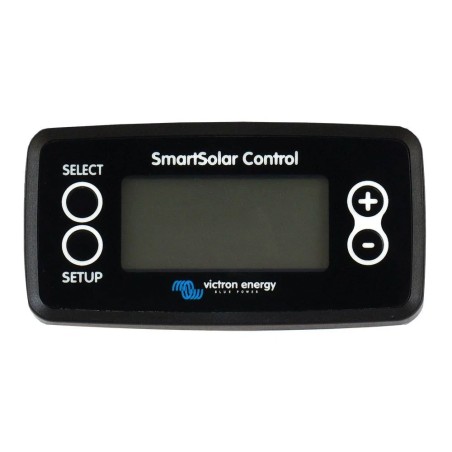

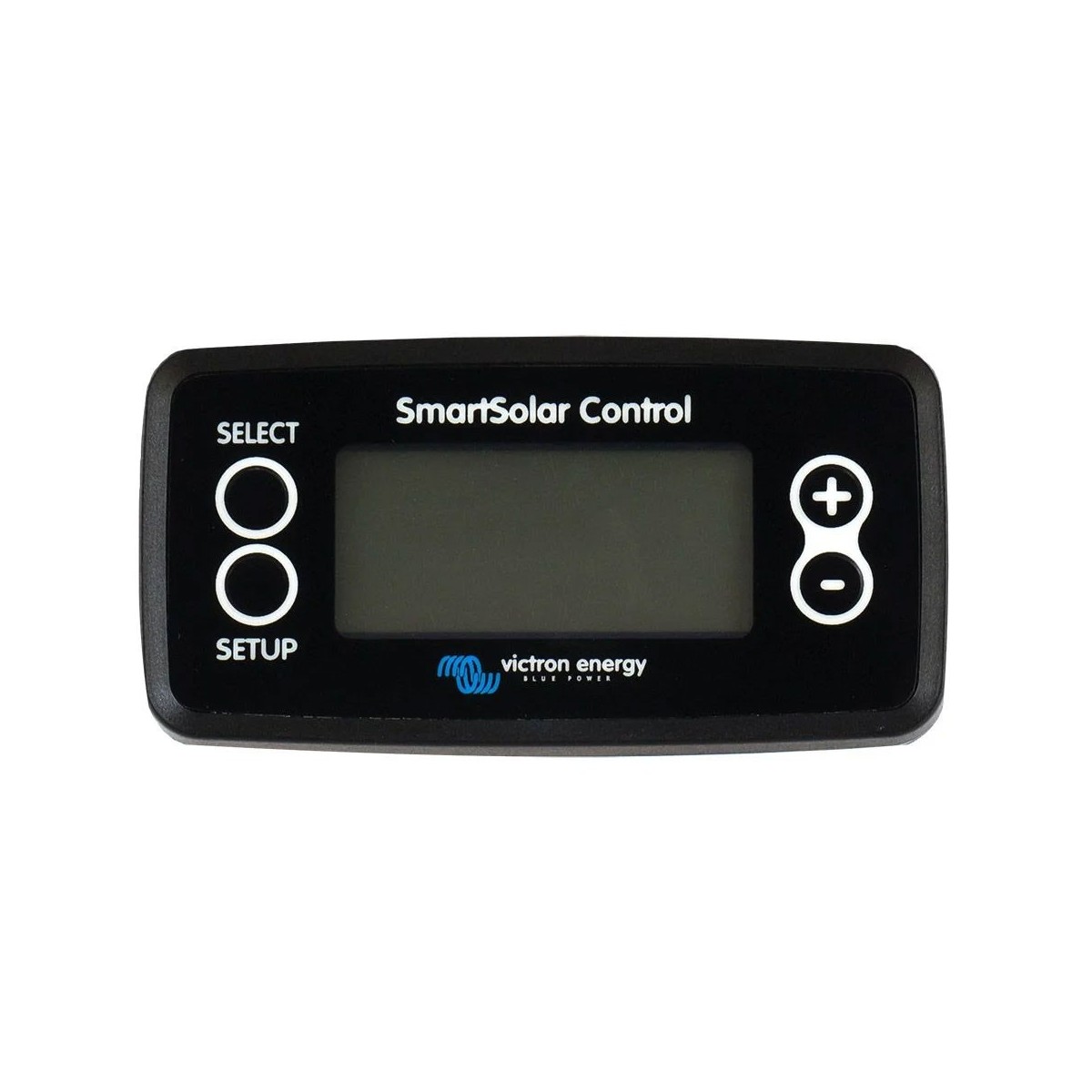

Victron SmartSolar display for MPPT 150/45-250/100 controllers
Complete your Victron SmartSolar TR charge controller with the plug-in Victron Control Display and get a quick overview of the most important parameters of your solar system. Compatible with the Smartsolar 150/45 and upwards to the 250/100. Smaller Smartsolar controllers have no Slot for the display.

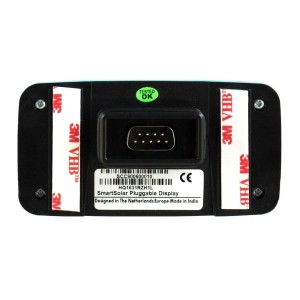

The display connects directly to the front of the charge controller. It can be used as a permanent or temporary display. Simply remove the rubber gasket protecting the connector on the front of the controller and connect the display.

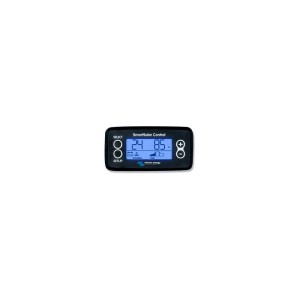

With the SmartSolar Control display you can monitor a compatible SmartSolar TR charge controller and view real-time data and history. The display can also be used to configure the charge controller.
You will be able to view the following data in real time or consult the history:
• PV power, yield, voltage and current
• Voltage, current and battery charge level
• Load output level and current (only available if your solar charger has a load output)
• History for 30 days
• Cumulative historical values over the life cycle of the solar charger
Technical data
Mounting type: Connects to the display port on the front of a Victron SmartSolar TR charge controller.
Compatibility: Victron SmartSolar MPPT, Victron Energy 150V/250V, BlueSolar. Charge controllers must be equipped with a display connector on the front.
Dimensions: 116x50x25 mm.
Weight: 66 g.
