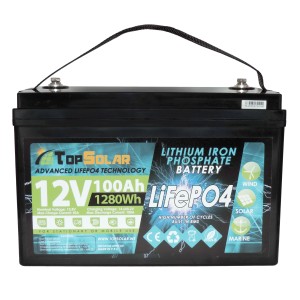

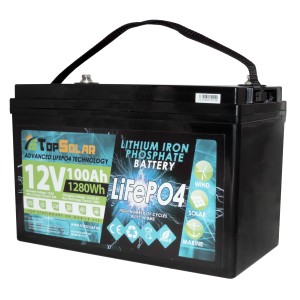

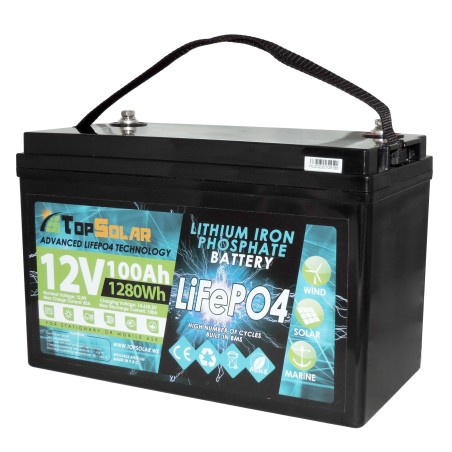

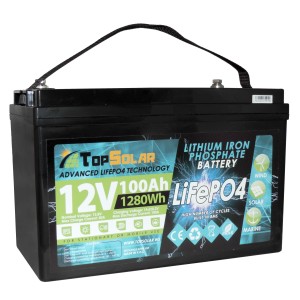

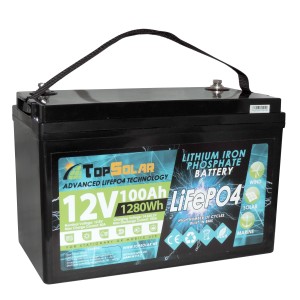

LiFePO4 12.8V 100Ah BMS Smart Lithium Battery TopSolar Italy
IN STOCK, Limited quantities
The Smart BMS LiFePO4 battery is definitely the best alternative to 12V lead-acid batteries because they have a stable supply voltage even under heavy load. Offering the advantages of lithium: light weight, stable voltage, high cycle count. It can directly store more than 96% of the supplied energy. High performance even in extreme conditions. Deep and constant discharge and recharge efficiency.
The battery charge monitoring system (commonly called Battery Management System or BMS) allows intelligent management of the range and safety of an e-mobility vehicle, in turn reducing power costs. The BMS manages the entire array of lithium cells (single cells or entire battery packs), establishing a safe operating area, i.e. a safety area within which the battery pack guarantees the best technical and energy performance. The BMS is basically an electronic system for the complete control of all the diagnostic and safety functions for the management of the voltage on board the vehicle and the balancing of the electric charge.
The fields of application of lithium batteries are diverse, especially for stationary or mobile use. In particular, mobile homes, solar boats, electric boats, electric scooters, golf cars or even electromobiles/wheelchairs and cleaning machines are increasingly equipped.

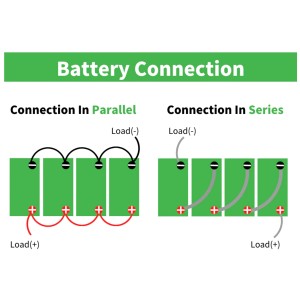

Series and parallel connection for 12V, 24V, 36V, 48V applications.
Electrical performance:
Rated Voltage: 12.8V
Nominal Capacity: 100Ah
Capacity @ 20A: 300 minutes
Energy: 1280Wh
Resistance: ≤25mΩ @ 50% SOC
Auto Discharge: <3% / Month

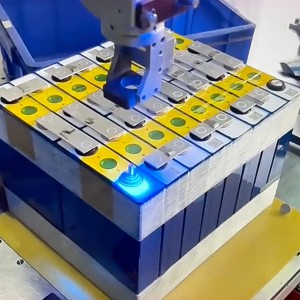

Cells: Prismatic cell 3.2V 100Ah
Life Cycle: >4000
Application: 12V installation, 4Pcs parallel, 4Pcs max connection in series (12-24-48V)
Exhaust performance:
Reconnect Voltage: >10V
Low Voltage Disconnect Recommended: 10V
Discharge Breakdown Voltage: >10V (50 ~ 150ms)
Charging performance:
Operating voltage range: 11.2V ~ 14.4V ± 0.2V
Constant charge current: 20A(0.2C)
Maximum charge current: 50A
Constant discharge current: 50A(0.5C)
Maximum discharge current: 100A
Balance Voltage: <14V
Temperature performance:
Charging temperature: 0 to 45℃
Discharge temperature: -20 to 60℃
Storage temperature: 0 to 45℃
Mechanical performance:
Terminal Type: M8
Terminal Torque: 80 ~ 100 in-lbs (9 ~ 11 N-m)
Case Material: ABS
Enclosure Protection: IP65
Dimensions (L x W x H): 330x172x223mm
Weight about 11 kg
Compliance:
Guarantee: European, as per the regulation in force on the date of sale
IMPORTANT NOTE:
The reduced VAT (10%) is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
