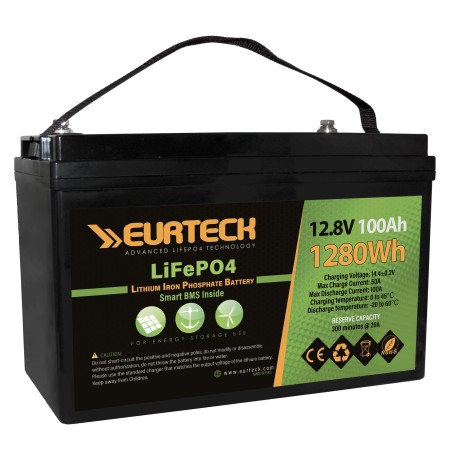

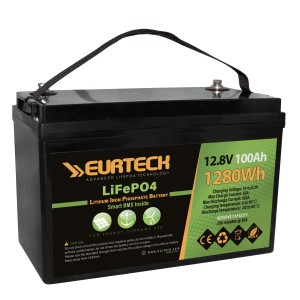

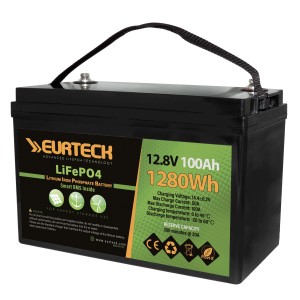

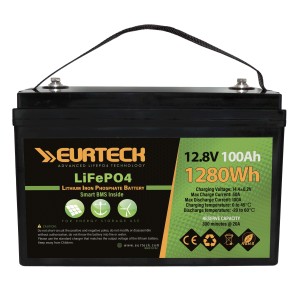

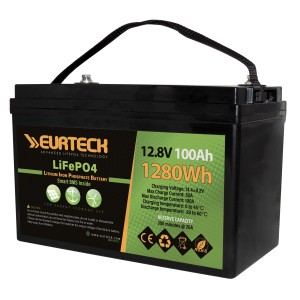

LiFePO4 12.8V 100Ah BMS Smart Lithium Battery Eurteck
IN STOCK, Limited quantities
LiFePO4 battery is definitely the best alternative to 12V lead batteries because they have a stable supply voltage even under heavy load. Offering the advantages of lithium: light weight, stable voltage, high number of cycles. It can directly store more than 96% of the energy supplied. High performance even in extreme conditions. Deep and constant discharge and refill efficiency.

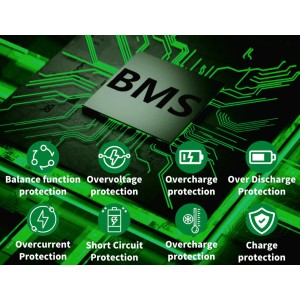

The battery charge monitoring system (commonly referred to as the Battery Management System or BMS) allows you to intelligently manage the range and safety of an e-mobility vehicle, in turn reducing power costs. The BMS manages the entire array of lithium cells (single cells or entire battery packs), determining a safe operating area, or a safety area within which the battery pack guarantees the best technical and energy performance. The BMS is basically an electronic system for the complete control of all the diagnostic and safety functions for the management of the high voltage on board the vehicle and the balancing of the electric charge.

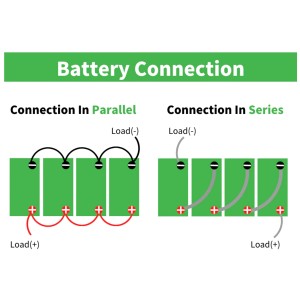

The fields of application of lithium batteries are diverse, especially for stationary or mobile use. In particular, mobile homes, solar boats, electric boats, electric scooters, golf cars or even electromobiles / wheelchairs and cleaning machines are increasingly equipped. 12V installation, parallel connection only, no series connection.
Electrical performance:
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Capacity @ 20A: 300 min
Energy: 1280Wh
Resistance: ≤25mΩ @ 50% SOC
Self Discharge: <3% / Month

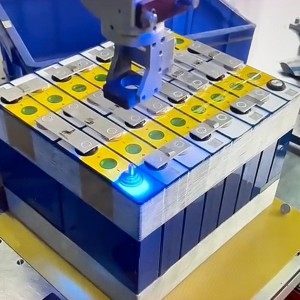

Cells: Prismatic Cell 3.2V100Ah
Life cycle:> 4000
Discharge performance:
Continuous Discharge Current: 100A
Reconnect Voltage: >10V
Short circuit protection 200 ~ 600 μs
Recommended Low Voltage Disconnect: 10V
Discharge Cut-Off Voltage: >8.4V (50 ~ 150ms)
Maximum Continuous Discharge Current: 300A (5 ~ 15ms)
Charge performance:
Recommended Charge Current: 20A
Maximum Charge Current: 50A
Recommended Charge Voltage: 14.6V
Self Download: >14.4V
Balancing Voltage: <14V
Performance in temperature:
Discharge Temperature: -20 ~ 60 °C
Charge Temperature: 0 ~ 45 °C
Storage Temperature: -5 ~ 35 °C
High Temperature Cut-Off: 65 °C
Mechanical performance:
Terminal Type: M8
Terminal Torque: 80 ~ 100 in-lbs (9 ~ 11 N-m)
Case Material: ABS
Enclosure Protection: IP65
Extension: LED display
Dimension (LxWxH): 330x172x223 mm
Weight 12.6 kg
Compliance:
Warranty: 2 Years
Shipping classification: UN 3480, CLASS 9
Certifications: CE, UN38.3, UL1642 & IEC621
IMPORTANT NOTE:
The reduced VAT (10%) is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
