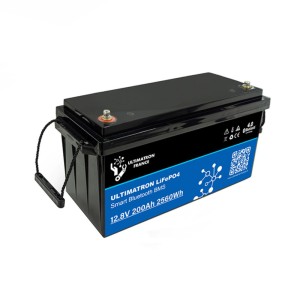

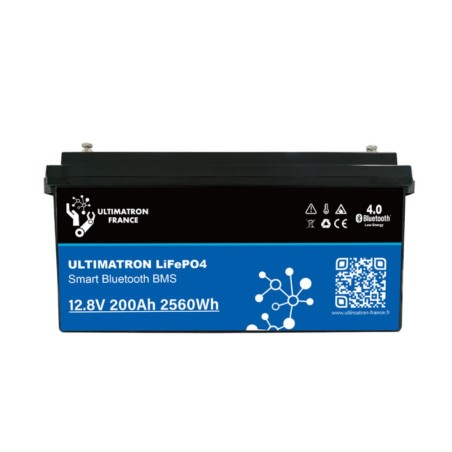

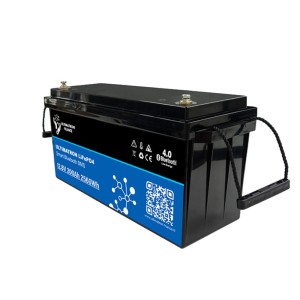

Ultimatron LiFePO4 Lithium Battery 12.8V 200Ah UBL-12-200-PRO with BMS Smart Bluetooth
Direct shipping from the Europe Warehouse, delivery in about 10-15 days throughout Europe.
Ultimatron LiFePO4 battery is definitely the best alternative to 12.8V lead batteries because they have a stable supply voltage even under heavy load. Offering the advantages of lithium: light weight, stable voltage, high number of cycles. It can directly store more than 96% of the energy supplied. High performance even in extreme conditions. Deep and constant discharge and refill efficiency.

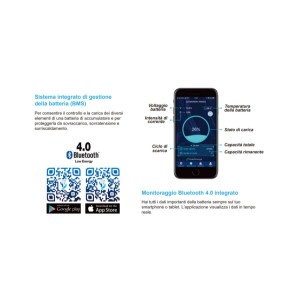

Furthermore, thanks to the BMS (Battery Management System) Smart integrated with Bluetooth 4.0 connection, it is possible to monitor the values in real time and the status of the battery directly from your smartphone thanks to the convenient dedicated App, for smartphone or tablet.
The fields of application of lithium batteries are diverse, especially for stationary or mobile use. In particular, mobile homes, solar boats, electric boats, electric scooters, golf cars or even electromobiles / wheelchairs and cleaning machines are increasingly equipped.
Technical features:
- Model: UBL-12-200-PRO;
- Battery type: Lithium Iron Phosphate LiFePO4;
- Capacity: 200Ah;
- Rated voltage: 12.8V;
- Number of cycles: over 6000 with 80% DOD discharge;
- Nominal energy: 2.560 Wh;
- Maximum charging voltage: 14.6V;
- Ideal / maximum charging current: 60A/100A;
- Discharge current: 150A;
- BMS: integrated with Bluetooth 4.0;
- Maximum discharge current: 500A (200~500ms);
- Operating voltage: 10.0 - 14.6V;
- Discharge operating temperature: -20 ~ 75 °C;
- Charging operating temperature: 0 ~ 50 °C;
- Storage temperature: -5 ~ + 35 ℃;
- Degree of protection: IP65;
- Connection terminals: M8 hexagonal head screw;

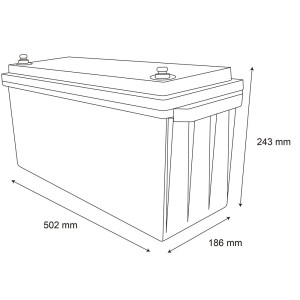

- Dimensions: 502x186xh246mm;
- Weight: 19.05 kg;
- Warranty: 5 years.
Conditions for series and parallel connection
The batteries must be of the same batch and of the same model. Before connecting the batteries in series or parallel, please charge them fully.
ATTENTION:
• Ultimatron LiFePO4 batteries can be connected both in series and in parallel in the maximum number of 4 units.
• Ultimatron batteries cannot be used as engine starter batteries.
If charged by alternators (campers and other vehicles) it is advisable to install a lithium battery charger.
• The BMS does not cut currents above 50A but the battery wears out above this value first.
