This article will be assembled to order and requires approximately 30-45 working days from date of order for shipping.

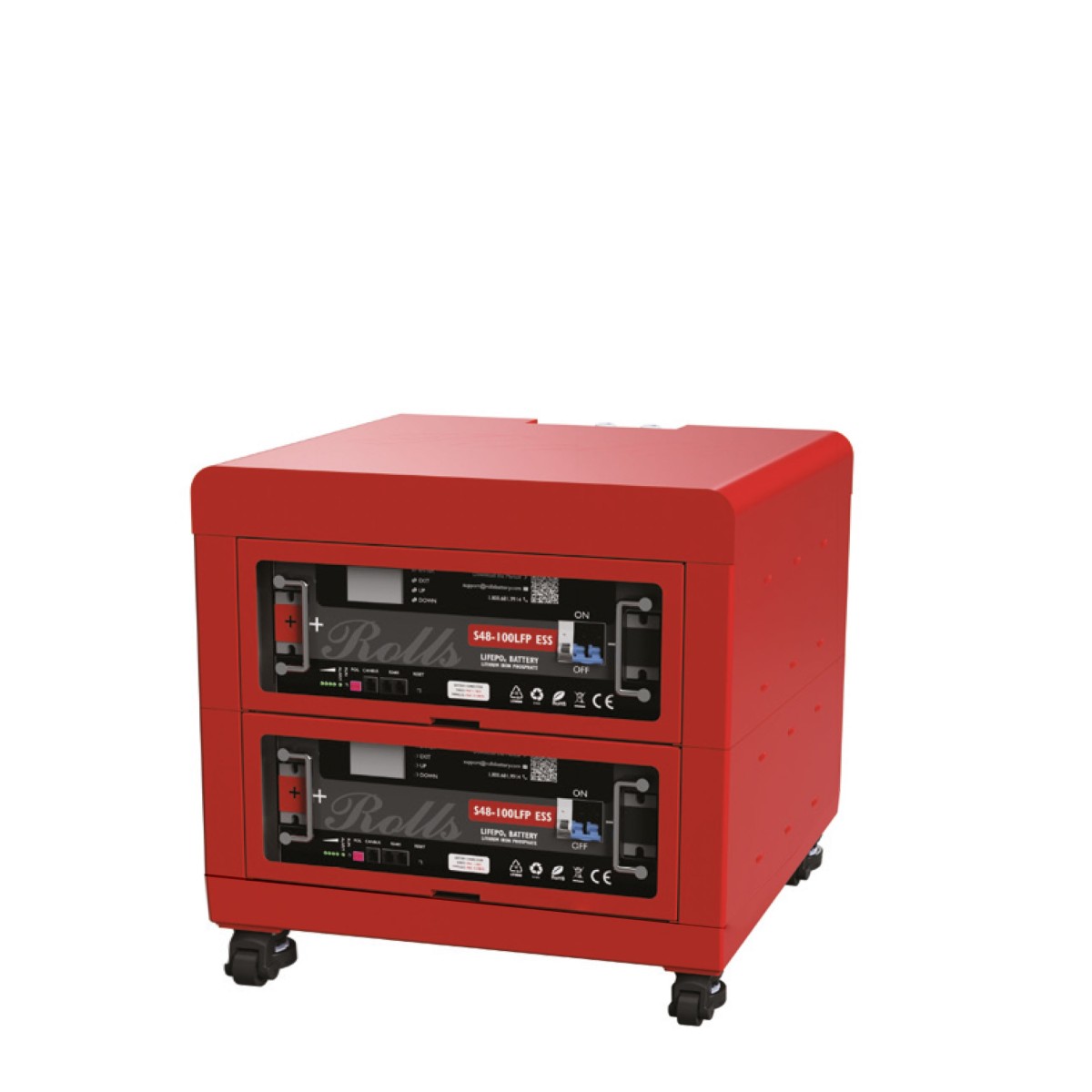

Rolls LiFePo4 Lithium Battery Bank 10.24kWh 2x 100Ah 48V 5.12kWh with 8U ESS cabinet
Rolls 48V 100Ah S-Series Lithium-Iron-Phosphate (LiFePO4) Energy Storage System (ESS) model offer a fully integrated and scalable energy storage solution with built-in LCD screen & controls, secondary protections in a rack-mount 19”(482 mm) 4U case design. Included the Rolls LFP ESS modular cabinet with fully integrated combiner boxes, top mount connectivity, including CAN bus, and locking casters, offering added safety in a custom, streamlined design.

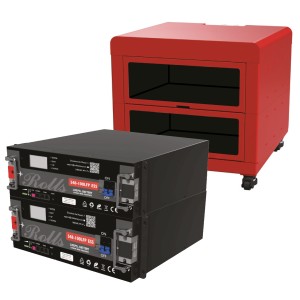

The battery bank is made by:
- 2 Rolls S48-100LFP ESS 48V 100Ah 5.12kWh LiFePo4 lithium batteries #RSS48100LFP;
- 1 Rolls Custom ESS Cabnet for Rolls S48-100LFP ESS lithium batteries #RSESSCABINET8U.

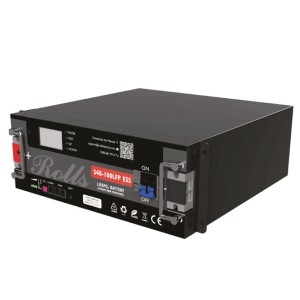

Rolls UL1973-certified high performance S48-100LFP ESS offers a compact 48V 100Ah energy storage solution in a 4U case design for installation in standard 19” racking systems.
Featuring a customized BMS, primary and secondary operating protections, an integrated display & controls showing realtime state-of-charge and error indication, external breaker access, CAN BUS, RJ485 & PC Connectivity. For increased capacity, up to 16 units may be connected in parallel.
• 19” rack compatible case design
• Integrated display with controls
• State-of-charge & error indication
• Customized BMS with operating protections
• CAN BUS & RJ485
• PC Connectivity
• Secondary protection
• External breaker access
• Optional modular 4U cabinet
• UL1973
• 3-year warranty
Battery technical data:
Model: S48-100LFP ESS
Voltage: 51.2V;
Rated capacity: 100Ah;
Rated capacity: 5,12kWh;
BCI: 4U
Terminal type: M8;
Lenght: 21.8” I 555 mm;
Width: 17.4” I 442 mm;
Height: 6.8” I 173 mm;
Weight: 111.3lbs | 50,5 kg.
Main features of the Rolls custom ESS cabinet:
- Degree of protection IP20;
- Robust and modern design with precise dimensions;
- Height-adjustable legs and wheels with brakes;
- Maximum load: 300 kg;
- Top and bottom wiring entry;
- Complete range of accessories.
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
