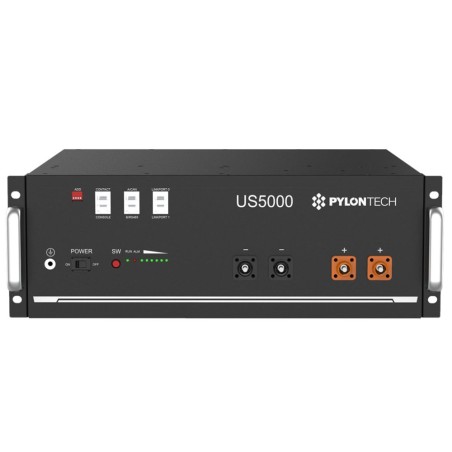

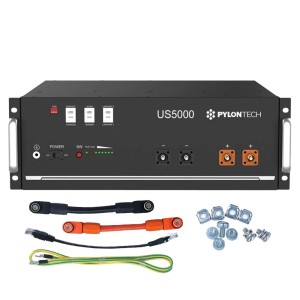

Pylontech US5000 4.8kWh 48V LiFePo4 Lithium Battery Photovoltaic Accumulation Storage
The US5000 is a lithium storage system of the latest generation. The accumulator was specially developed to fully meet the high demands placed on a solar accumulator today. Maximum safety and a long service life are guaranteed even with regular deep discharge thanks to the latest technology.
The latest battery of the market-leading manufacturer with now 4.8kWh per module has again a battery management system (bms) built into each module and therefore offers a lot of security. Internally, the individual cells are thus monitored and balanced against overvoltage, overtemperature, deep discharge, etc. protected. The battery is compatible and certified with many available inverters.
Features
• Extremely cycle resistant - over 6000 cycles at 95% DoD
• More usable energy content than the previous model US5000
• Lifetime over 10 years
• Absolutely intrinsically safe lithium technology
• Compatible with many available inverters
• Automatic address setting when connected in multi-groups
• High charging and discharging power possible
• Integrated BMS
• Very high storage density - low weight and compact design
• Easy installation thanks to modular design
• Absolutely maintenance-free and durable
• Built-in soft-start function capable of reducing the current surge when the inverter is started from the battery
• Dual active protection at BMS level
• Supports WakeUp by 5-12V signal from rj45 port
• Pre-charge function to protect ESS system from overvoltage function
Battery management system in each module
The battery management system integrated in each module protects each installed battery cell from harmful influences over the entire life of the module and effectively prevents premature failure.
Protection against:
• Deep discharge and overcharge
• overvoltage during charging
• excessive currents during charging and discharging
• over and under temperature
• Short circuit and reverse polarity
Constant monitoring of the individual cell voltages (cell balance)
Modular design
The system has a modular design and can be configured precisely to the desired storage capacity by interconnecting several modules. Each storage module consists of a high-performance lithium iron phosphate (LiFePo4) accumulator and an integrated BMS.
High cycle life
The extremely high cycle life of the installed LiFePo4 cells make Pylontech us3000c modules the optimal storage solution for photovoltaic systems. Regardless of whether the solar system is grid-connected or stand-alone, the Pylontech storage system offers several advantages over typical lead-acid batteries and other lithium technologies.
Technical data
- Battery Type: Lithium Iron Phosphate (LiFePo4);
- Rated voltage: 48V;
- Rated capacity: 4800 Wh;
- Usable capacity (95% DoD): 4560 Wh;
- Discharge voltage range: 44.5 - 53.5V;
- Charging voltage range: 52.5 - 53.5V;
- Max. Peak (discharge) charging current: 200A @15sec;
- Max. (Discharge) charging current: 120A @15min;
- Recommended charge/discharge current: 75A;
- Communication: rs485, CAN;
- Protection class: IP20;
- Temperature range charge: 0°C - +50°C;
- Temperature range discharge: -10°C - +50°C;
- Temperature range storage: -20°C - +60°C;
- Service life: over 10 years;
- Cycle life: over 6000 at 95% DoD;
- BMS / monitoring: integrated in each module;
- Dimensions: 442x420x161 mm;
- Weight: 38 kg;
- Warranty: 10 years manufacturer warranty;
- Certification: TÜV, ce, UN38.8.
