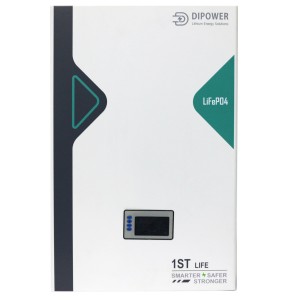

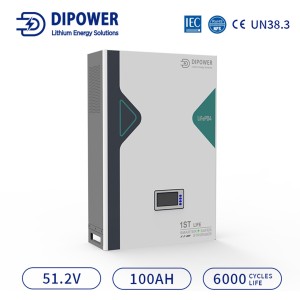

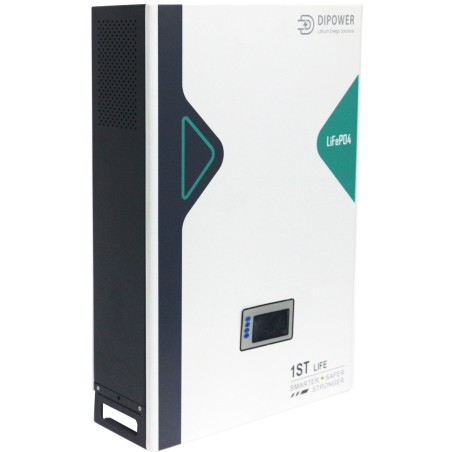

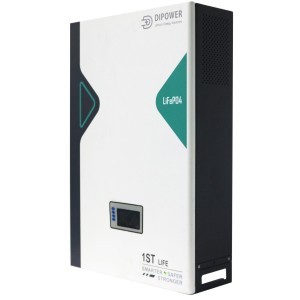

Low voltage 48V 5.12KWh LiFePo4 battery for solar storage
Low voltage solar battery 48V 5.12KWh. Featuring lithium iron phosphate (LFP) battery technology that increases safety and ensures reliable performance, the low voltage (BT) series has been specifically designed for residential applications with superior performance.

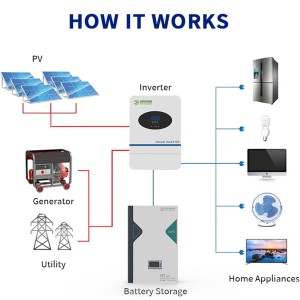

The system is optimized for self-consumption and to constitute a reserve of solar energy. Compatible with GoodWe, Deye, Victron, SMA, Sofar, Voltronic, Gowatt inverters for OFFGRID installations. the modular battery system is scalable in the range of 5.12 to 81.92KWh.
Safe and practical low voltage battery system for self-consumption and back-up of photovoltaic energy.

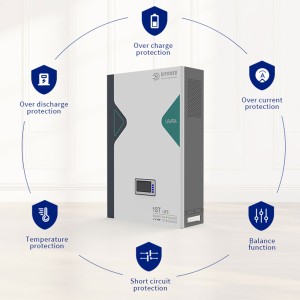

• Maximization of power back-up
• Maximum safety standards
• Intelligent and efficient operation
• Modern and compact design
• Reliable LFP battery cell
• High battery cycle stability
• Remote diagnosis and update via inverter
Automatically identifies the presence of multiple storage units in parallel.
Automatic restart in Undervoltage
It can restart automatically when the battery goes into self-protection mode due to undervoltage.
Technical data
Nominal energy: 5.12 kWh
Usable power: 5 kWh
Cell Type: LFP (LiFePO4)
Cell configuration: 16S1P
Rated voltage: 51.2V
Operating Voltage Range: 48~57.6V
Rated charge/discharge current: 100 A
Short circuit current: 2.323kA @1.0ms

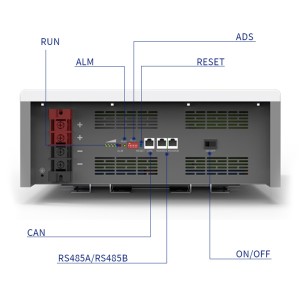

Communication: CAN
Weight: 50kg

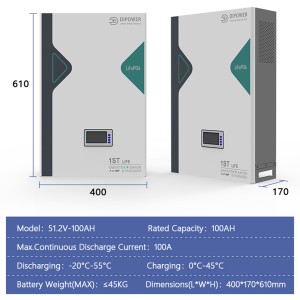

Dimensions: 610×400×170 mm
Operating temperature: Charge: 0 ~ +50 °C / Discharge: -10 ~ +50 °C
Storage temperature: -20 ~ +45°C (≤one month); 0 ~ +35 °C (≤one year)
Relative Humidity: 0~95%
Maximum operating altitude: 2000 m
Degree of protection: IP65

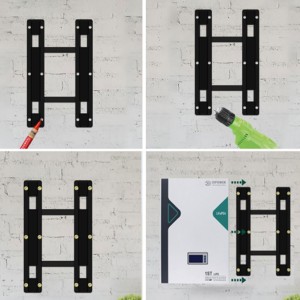

Installation type: wall mounted / ground mounted
Round trip efficiency: 93.0%
Life cycle: 3000-6000 @0.5C / 0.5C
Standards and certifications:
- Safety: IEC62619, IEC 62040, CEC
- EMC: CE, RCM
- Transport: UN38.3
