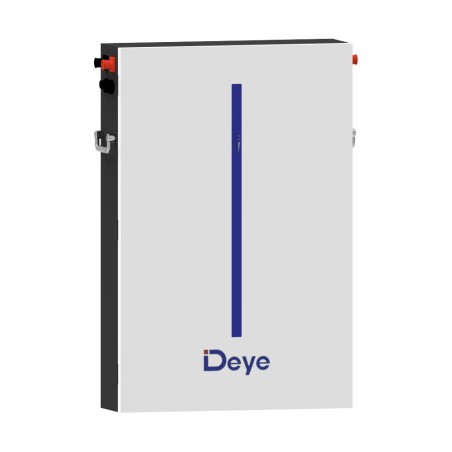

Deye RW-M6.1 6.14kW 51.2V LiFePO4 Battery with BMS
The RW-M6.1 is a high-performance energy storage solution that uses storage lithium batteries for homes and small to medium-sized buildings. It has a long lifespan, fast charging, and a compact design.
Introducing the remarkable RW-M6.1, an advanced lithium iron phosphate (LiFePO4) battery meticulously engineered for both residential and commercial energy storage applications. This innovative battery stands out in the market for its outstanding safety features, impressive efficiency, and long operational lifespan. Designed to meet the growing demand for sustainable energy solutions, the RW-M6.1 offers a reliable and high-performance option for increasing self-consumption and optimizing energy usage.
The RW-M6.1 lithium iron phosphate battery is an exceptional choice for those looking for a powerful, efficient, and sustainable energy storage solution. Its combination of safety, performance, and flexibility makes it ideally suited to meet the challenges of modern energy consumption, empowering users to optimize their energy resources and contribute to a sustainable future.
◆ Safer
Cobalt Free Lithium Iron Phosphate (LFP) Battery: Safety and long Lifespan, high efficiency and high p ower density. Intelligent BMS, providing complete protection.
◆ Reliable
Support high discharge power. IP65, natural cooling, wide temperature range: 20°C to 55°C
◆ Flexible
Modular design, easy to expand, Max. 32 units in parallel, Max. capacity of 196 kWh. Suited to residential and commercial applications for increasing the self consumption ratio.
◆ Convenient
Battery module auto networking, e asy maintenance, support remotely monitoring and upgrade, s upport USB drive upgrade the firmware.
◆ Eco-Friendly
Use environmental protection materials, the whole module non toxic, pollution free
◆ Mounting Methods
Wall mounted, and floor mounted, saving installation space.
Technical data
Model: RW-M6.1
Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
Capacity: 120 Ah
Nominal Energy: 6.14 kWh
Usable Energy: 5.53 kWh
Charge/Discharge Current:
- Recommend: 60 A
- Max: 100 A
- Peak (2 mins, 25°C): 150 A
Dimensions (W/H/D): 475x720x145 mm
Weight: Approximately 58 kg
Cycle Life: Exceeding 6000 cycles at a temperature of 25°C, with a 90% depth of discharge
Scalability: Max. 32 pcs pack (196 kWh) in parallel
Nominal Voltage: 51.2 V
Operating Voltage: 43.2~57.6 V
Recommend Depth of Discharge: 90%
Master LED Indicator: 5 LED (SOC:20%~SOC100%), 3 LED (working, alarming, protecting)
IP Rating of Enclosure: IP65
Operating Temperature:
- Charge: 0~55 ℃ (Optional heating: -20~55 °C)
- Discharge: 20~55 °C
Storage Temperature: 0~35 °C
Humidity: 5%~95%
Altitude: ≤2000m
Installation: Wall Mounted, Floor Mounted
Communication Port: CAN2.0, RS485
Warranty Period: 10 years
Energy Throughput: 20MWh@70%EOL
Certification: UN38.3, IEC62619, CE, CEI 0-21
Certifications: The SE-G5.1 Pro-B has met, and continues to uphold, a variety of rigorous safety and performance standards, holding multiple certifications such as UN38.3, IEC62619, CE, and CEI 0-21. These certifications provide assurance to users about the reliability and safety of their energy storage solutions.
