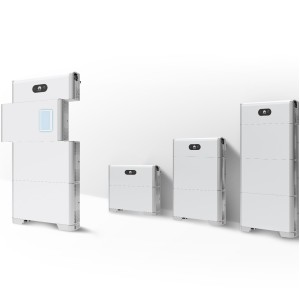

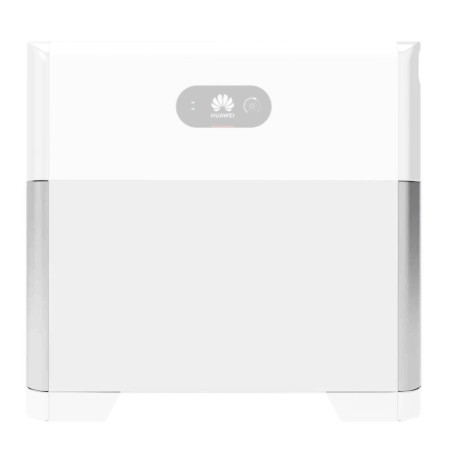

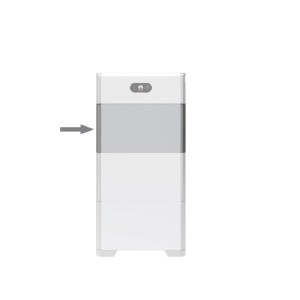

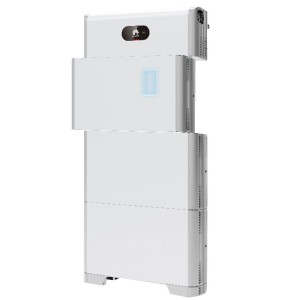

Huawei LUNA2000-5-EO 360V 5kWh HV Lithium Battery without Power Module BMS
The 360V LUNA2000 5 kWh lithium battery from the manufacturer HUAWEI is a modular battery for single-phase and three-phase self-consumption systems with HUAWEI inverters. This module has 5kWh of useful energy and the BMS (Battery Management System) not included. The HUAWEI LUNA2000 range operates on a nominal voltage of 360V when connected to a single-phase system, with an operating range of 350 to 560V. Connected to a three-phase inverter, they operate at a nominal voltage of 600V with an operating range between 600 and 980V. The battery is equipped with cells with Lithium Ferrophosphate (LiFePO4) technology, in order to offer IP65 protection and dissipation by natural convection, with a sound level below 29 decibels. Finally, it can be wall or surface mounted.

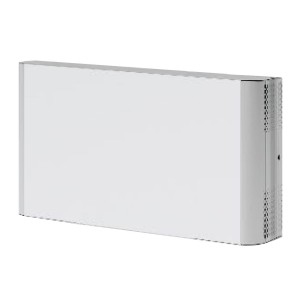

Compatible with the SUN2000 KTL single-phase inverter range from 2 to 6kW and with the SUN2000 KTL-M1 three-phase inverters from 3 to 10kW. Communication with the inverter is via the BMS via RS485 and also incorporates a CAN connection for parallel operation. The BMS has a small display to indicate the charging status, as well as an LED to indicate the operating status.
Complies with all certifications required for its use, such as CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3.
It can restart automatically when the battery enters self-protection mode due to undervoltage.
Technical data
- Battery usable energy: 5 kWh
- Max. output power: 2.5 kW
- Peak output power: 3.5 kW, 10 s
- Nominal voltage (single phase system/L1): 360 V
- Operating voltage range (single phase system/L1): 350 - 560 V
- Nominal voltage (three phase system/M1): 600 V
- Operating voltage range (three phase system/M1): 600 - 980 V
- Display: SOC status indicator, LED indicator
- Communication: RS485 / CAN (only for parallel operation)
- Operating temperature: -10°C ~ + 55°C
- Relative humidity: 5% ~ 95%
- Cooling: Natural convection
- Protection rating: IP 55
- Noise emission: <29 dB - Cell technology: Lithium-iron phosphate (LiFePO4)
- Scalability: Max. 2 systems in parallel operation
- Compatible inverters: SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1
