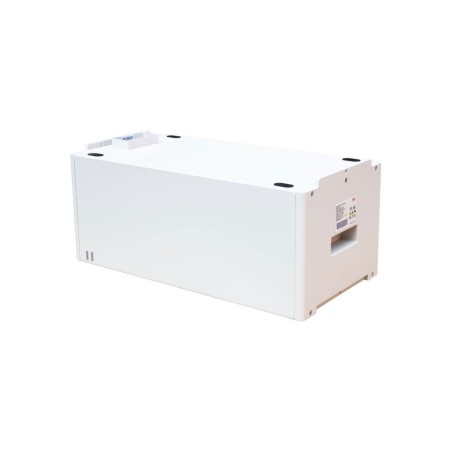

BYD Battery-Box Premium HVM 51.2V 2.76kWh Battery Module without BMS
51.2V 2.76kWh BYD Battery-Box Premium HVM High voltage lithium battery module without BMS power module. Suitable for single-phase or three-phase self-consumption systems with BYD inverter.

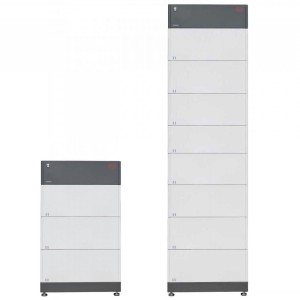

One Battery-Box Premium HVM is composed of 3 to 8 HVM battery modules that are connected in series to achieve a usable capacity of 8.28 to 22.08 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 66.24 kWh. Ability to scale by adding HVM modules or parallel HVM stacks later.
It can be used with various types of equipment and systems. Suitable for those applications that require limited space, high power and long life. The simplicity and modularity of this system make it an extremely flexible product, with capacity that can also be implemented at a later time.
• Capable of High-Powered Emergency-Backup and Off-Grid Functionality
• Highest Efficiency Thanks to a Real High-Voltage Series Connection
• The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
• Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
• Two Distinct Modules to Cover the Complete Range of System Sizes
• Highest Safety Standards like VDE 2510-50, IEC62619, CEC, CE, UN38.3
Features
- Model: HVM 2.76;
- Lithium-ion battery (lithium iron phosphate);
- Cell chemistry: LFP;
- Available Energy: 2.76 kWh;
- Maximum Output Current: 50 A;
- Peak Output Current: 75 A, 3 s;
- Nominal Voltage: 51.2 V;
- Interface: CAN, RS485;
- Operating Temperature: -10°C to +50°C;
- Enclosure Protection Rating: IP55;
- Round-trip efficiency: ≥96%;
- Dimensions (H/W/D): 296x585x298 mm;
- Weight: 38.4 kg;
- Certification: VDE2510-50 / IEC62619 / CEC / CE / UN38.3;
- Applications: ON Grid / ON Grid + Backup / OFF Grid;
- Warranty: 10 years;
- Compatible inverters: BYD Battery-Box Premium HVS / HVM.
