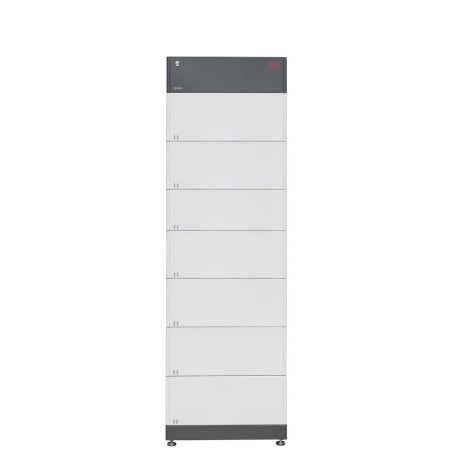

BYD Battery-Box Premium HVM 19.3 19.32kWh 7 lithium Box Batteries with BMS

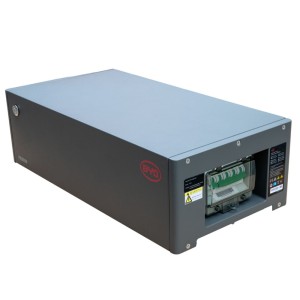

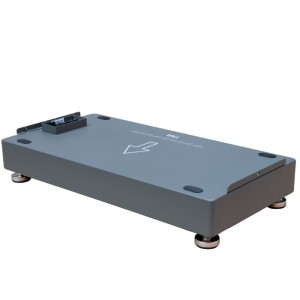

The Battery-Box Premium HVM is made of 7 high voltage lithium batteries connected in series, the 2.76 kWh 51.2 V each one BMS control module and the battery module support base to obtain a usable capacity of 19.32 kWh. Additionally, direct parallel connection of up to 3 identical Battery-Box Premium HVM allows a maximum capacity of 66.2 kWh. Ability to scale by adding HVM modules or parallel HVM stacks later.
• Capable of High-Powered Emergency-Backup and Off-Grid Functionality
• Highest Efficiency Thanks to a Real High-Voltage Series Connection
• The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
• Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
• Two Distinct Modules to Cover the Complete Range of System Sizes
• Highest Safety Standards like VDE 2510-50
Lithium iron phosphate batteries are the safest batteries on the market.
- The maximum working temperature is the one released in case of damage to the battery and is the lowest temperature among the different chemistries of lithium ion batteries.
NOTE: The BYD HVM battery is made of a minimum of 3 HVM + BMS modules to a maximum of 8 HVM + BMS modules.
Features
Model: HVM 19.3;

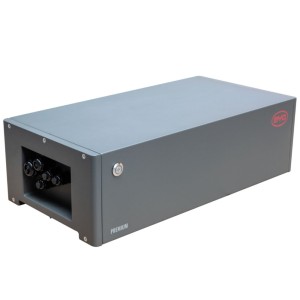

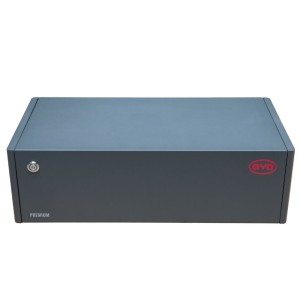

Battery module: HVM (2.76 kWh, 51.2 V, 38 kg);
Number of modules: 7;
Available Energy: 19.32 kWh;
Maximum Output Current: 50 A;
Peak Output Current: 75 A, 3s;
Rated Voltage: 358.4 V;
Operating Voltage: 280~413 V;
Dimensions (H/W/D): 1927x585x298 mm;
Weight: 281 kg.
