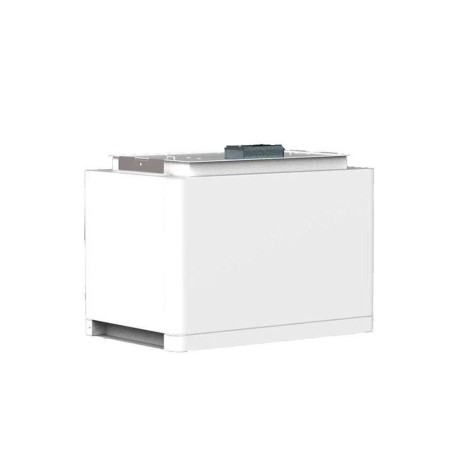

Pylontech FORCE-L2 FL48074M 48V 3.552kWh Low Voltage Battery Module without BMS

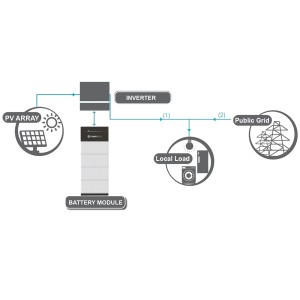

Pylontech FORCE-L2 FL48074M low voltage lithium battery module 48V 3.552kWh without BMS power module suitable for single-phase or three-phase self-consumption systems with Pylontech inverter. Equipped with cells with Lithium Ferrophosphate (LiFePO4) technology.
Force-L2 is a 48 V DC storage system based on the lithium iron phosphate battery composed of a variable number of batteries from 2 to 4 with an external BMS, so as to be able to adapt to different system configurations. It can be used with various types of equipment and systems. Suitable for those applications requiring limited space, high power and long life. The simplicity and modularity of this system make it an extremely flexible product, with capabilities that can also be implemented at a later time.
• Modular system, from 2 to 4 modules with 1 external BMS
• Capacity of the single battery module equal to 3.55 kWh
• System scalable from 7 kWh up to 14 kWh
• Parallelable
• EPS backup function
• Plug & Play
• 90% DOD
Technical features:
- Lithium ion battery (lithium iron phosphate);
- Voltage: 48 V;
- Battery capacity: 3,552 kWh;
- Usable capacity: 3.37 kWh;
- Interface: CAN, RS485;
- Cellular chemistry: LFP;
- Storage type: Low Voltage;
- Width: 450 mm;
- Height: 296 mm;
- Length: 296 mm;
- Weight: 35.5 kg.
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
