48V 5.74kWh Photovoltaic Kit with 6.2kVa Inverter and 5.12kWh Battery
Solar Kit consist of 14 410W monocrystalline silicon photovoltaic panels, TopSolar Hybrid Solar Inverter 48v 6200VA to 230v MPPT 80A 500Vdc for 6400w PV and Low voltage solar battery 48V 5.12kWh for Off-Grid systems with grid support.
For more details, we recommend viewing the technical data sheets of each single component of the kit or asking our technicians for information.
The kit contains:
- n°14 Risen RSM120-8-410M-B-TW 410W monocrystalline modules #N151030050303;
- n°1 TopSolar Hybrid Solar Inverter 48v 6200VA to 230v MPPT 80A 500Vdc for 6400w PV #N150422022024;
- n°1 Low voltage solar battery 48V 5.12kWh #N150520017380.

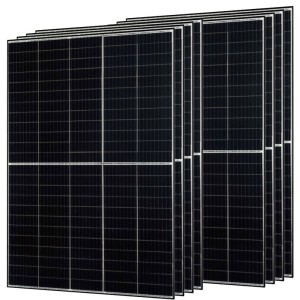

Set of 14 Monocrystalline 410W photovoltaic panels
The 410W solar module is a high-efficiency black-white frame monocrystalline solar module with half-cut technologies, which consists of halving the cells. Efficiency of up to 21.3% thanks to superior cell technology and cutting-edge production methods. This technology reduces thermal resistance and increases power output by 5 to 10 Wp. Self-cleaning glass. Powerful module with low irradiance even in low light conditions (morning or cloudy).
• High efficiency monocrystalline technology
• Low current density technology to effectively reduce internal power consumption.
• MBB and HC technology to reduce negative affect from yielding caused by micro cracks and shadows.
• High power output leads to lower BOS cost.
Global, Tier 1 bankable brand, with independently certified state-of-the-art automated manufacturing. Industry leading lowest thermal coefficient of power. Industry leading 12 years product warranty. Excellent low irradiance performance. Excellent PID resistance. Dual stage 100% EL inspection warranting defect-free product. Module Imp binning radically reduces stringmismatch losses. Excellent wind load 2400Pa and snow load 5400Pa under certain installation method.
Specification:
Model: RSM120-8-410M-B-TW;
Nominal Power: 410 W;
Cell Type: Monocrystalline;
Number of cells in series: 120 (5x12+5x12);
Open-circuit Voltage (Voc): 41.90 V;
Maximum Power Voltage (Vmp): 34.89 V;
Short-circuit Current (Isc): 12.47 A;
Maximum Power Current (Imp): 11.76 A;
Max System Voltage: 1500 V DC;
Module Efficiency: 21.3 %;
Frame: anodizedaluminium alloy;
Dimension: 1754x1096x30 mm;
Weight: 21 kg.

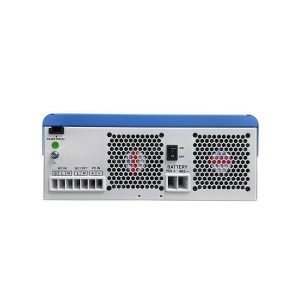

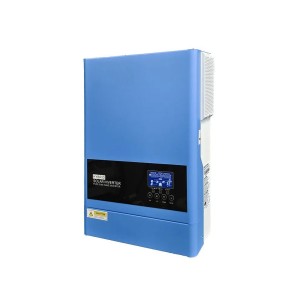

n°1 TopSolar Hybrid Solar Inverter 48V 6200VA to 230V MPPT 80A 500Vdc for 6400W PV

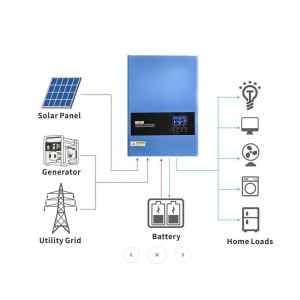

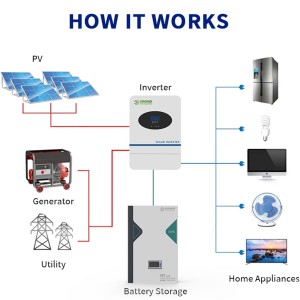

This inverter with display allows you to create an OFF GRID photovoltaic system of up to 6000w for recharging the 48V battery bank and using 230V alternating current with additional 230V AC input for emergency generator or network manager. The ALL in ONE inverter is the simplest system for creating an off-grid system with automatic exchange with the mains (or emergency generator), all components that usually make up a classic stand-alone photovoltaic system (charge regulator, inverter, control unit exchange and battery charger). With this inverter you will always be able to use renewable sources, therefore solar energy, energy stored in the battery and only in the event of the absence of the two renewables, the inverter automatically switches to the AC emergency input of the generator or network manager; This system allows you to have maximum savings on your bill or even completely eliminate the connection with the network operator.
Main features
• Pure Sine Wave.
• Built-in Wi-Fi for mobile monitoring (Android/Iphone app available).
• Removable LCD control module with multiple communications.
• Supply the load from the grid or PV, even if the battery is not available.
• Configurable AC/PV output usage timer and priority.
• Integrated MPPT Solar Controller.
• High efficiency pure sine wave inverter (PF=1).
• Wide PV input range (120V DC - 500V DC) 120A MPPT SCC.
• Increase to 2X continuous power for 5 seconds for engine loads.
• Automatic switch-on in case of AC power failure.
• Overload and short circuit protection.
• 3-stage intelligent battery charger to optimize battery performance.
• Automatic restart while AC is recovering.
Technical characteristics Inverter output
- Continuous Power: 6200VA/5500W;
- Peak Power: 12000VA/10000W;
- Wave Type: Pure Sine Wave;
- AC Voltage Regulation: ±5%;
- Inverter Efficiency (Peak): 90-93%;
- Transfer Time: 15ms (for Personal Computers), 20ms (for home loads).
Technical Characteristics AC input
- Voltage: 230 Vac;
- Selectable voltage range: 170∼280 Vac (for Personal Computer) 90∼280 Vac (for household loads);
- Frequency: 50Hz - 60Hz (automatic detection).
Technical Characteristics DC Input (Battery)
- Nominal voltage: 48 Vdc;
- Charging Voltage: 40-60 Vdc.
Features DC Solar Controller and Charger and AC
- Maximum photovoltaic power: 6400W;
- Optimal photovoltaic voltage for MPPT: 120 Vdc ~ 450 Vdc;
- Maximum open circuit photovoltaic voltage: 500 Vdc;
- Maximum charging current: 120A;
- Maximum efficiency: 98%.
Mechanical Specifications
- Measurements: 438x295x105h mm;
- Weight: 9 kg.
Working conditions
- Humidity: 5% to 95% relative humidity;
- Operating temperature: from 10 °C to +50 °C;
- Storage temperature: -15 °C to +60 °C.

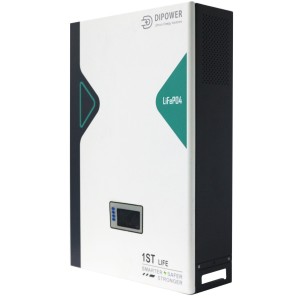

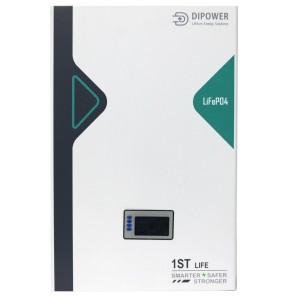

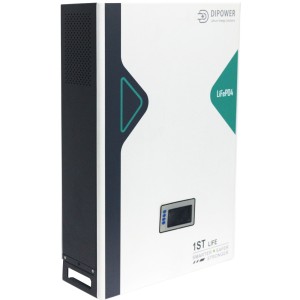

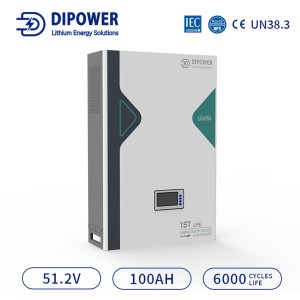

n°1 Low voltage solar battery 48V 5.12kWh
Low voltage solar battery 48V 5.12KWh. Featuring lithium iron phosphate (LFP) battery technology that increases safety and ensures reliable performance, the low voltage (BT) series has been specifically designed for residential applications with superior performance. The system is optimized for self-consumption and to constitute a reserve of solar energy. Compatible with GoodWe, Deye, Victron, SMA, Sofar, Voltronic, Gowatt inverters for OFFGRID installations. the modular battery system is scalable in the range of 5.12 to 81.92KWh. Safe and practical low voltage battery system for self-consumption and back-up of photovoltaic energy.

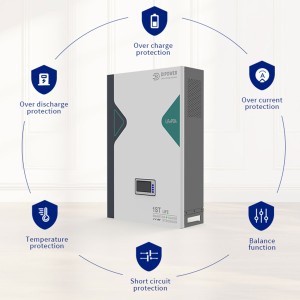

Automatically identifies the presence of multiple storage units in parallel. Automatic restart in Undervoltage. It can restart automatically when the battery goes into self-protection mode due to undervoltage.
• Maximization of power back-up
• Maximum safety standards
• Intelligent and efficient operation
• Modern and compact design
• Reliable LFP battery cell
• High battery cycle stability
• Remote diagnosis and update via inverter
Technical data
Nominal energy: 5.12 kWh;
Usable power: 5 kWh;
Cell Type: LFP (LiFePO4);
Cell configuration: 16S1P;
Rated voltage: 51.2V;
Operating Voltage Range: 48~57.6V;
Rated charge/discharge current: 100 A;
Short circuit current: 2.323kA @1.0ms;

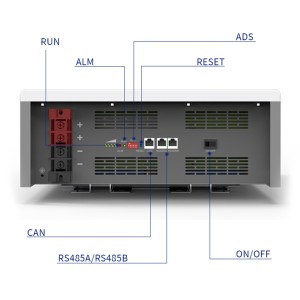

Communication: CAN;
Weight: 50 kg;
Dimensions: 610×400×170 mm;
Operating temperature: Charge: 0 ~ +50 °C / Discharge: -10 ~ +50 °C;
Storage temperature: -20 ~ +45°C (≤one month); 0 ~ +35 °C (≤one year);
Relative Humidity: 0~95%;
Maximum operating altitude: 2000 m;
Degree of protection: IP65;

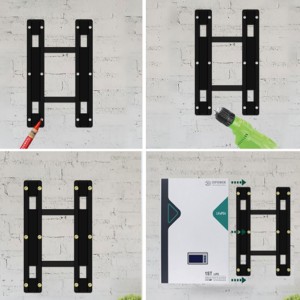

Installation type: wall mounted / ground mounted;
Round trip efficiency: 93.0%;
Life cycle: 3000-6000 @0.5C / 0.5C.
Standards and certifications:
- Safety: IEC62619, IEC 62040, CEC;
- EMC: CE, RCM;
- Transport: UN38.3.
NOTE: the panels must be mounted in 2 strings of 7 pieces each and then placed in parallel
