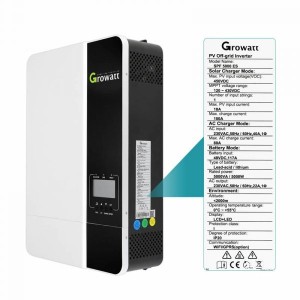

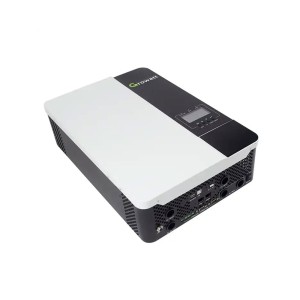

Growatt SPF 5000ES 5kW 48Vdc 230Vac Single Phase Hybrid Inverter Off-grid

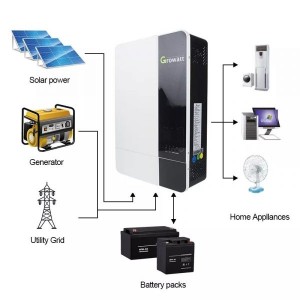

Growatt SPF 5000 ES (Solar Power Frequency) is a type of hybrid solar inverter designed for use in residential and commercial solar power systems. It is a combination of an inverter, a battery charger, and a transfer switch that manages the flow of energy between solar panels, batteries, and the electrical grid. The Growatt SPF inverter is known for its high efficiency, reliability, and flexibility. It can work with both on-grid and off-grid solar systems, and can be used for backup power during power outages. It also has a range of features, such as a built-in MPPT charge controller, LCD display, and remote monitoring capabilities through a mobile app.
One-phase off-grid inverter designed for residential and small industrial applications. Inverter is also equipped with a range of advanced features that make it easy to install and use. It has a user-friendly interface that allows homeowners and installers to monitor system performance and adjust settings as needed. The inverter is also compatible with a range of monitoring systems, including WiFi, Ethernet, and GPRS.
• DC/AC ratio up to 1.2
• 2 times peak power ability
• Output power factor up to 1.0
• Up to 6 units in parallel for capacity extension
• Multi-customized modes for diverse scenarios
• Compatible with lithium, lead-acid and GEL batteries
• Support WiFi and GPRS remote monitoring
• PV keeper platform for local commissioning
• Timing charging and output control
• Growatt comprehensive warranty plan
• 10 year warranty
Basic specifications of hybrid inverter Growatt SPF 5000 ES:
- Battery type: Lithium/Lead-acid;
- Rated power: 5000 W;
- Surge power: 10000 VA;
- Battery Voltage: 48 VDC;
- Max. PV Array Power: 6000 W;
- MPPT Range Operating Voltage – 120VDC – 430VDC;
- Maximum solar charge current: 100 A;
- Charge Current: 80 A;

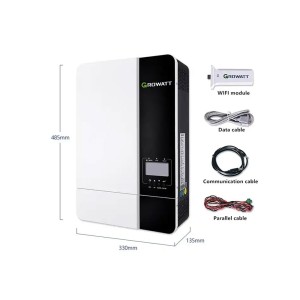

- Dimensions (WxHxD): 330x485x135 mm;
- Weight: 12 kg;
- MAX. efficiency: 93%;
- Protection degree: IP20.
