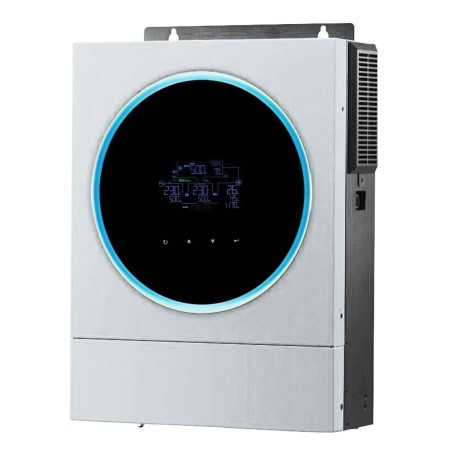

TopSolar VM IV 3600VA 3.6kW 230V Off Grid Solar Inverter with MPPT 24V 120A 4000W charge controller

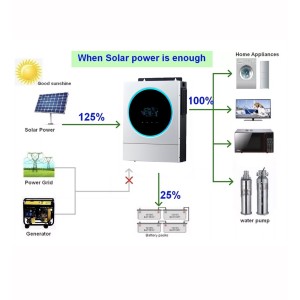

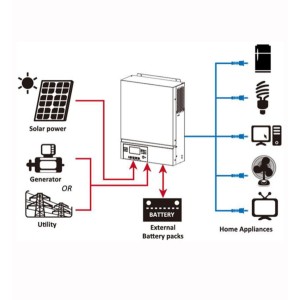

This inverter with display enables the realization of an OFF GRID photovoltaic system of up to 3.6Kw to recharge a 24V battery bank and the use of 230V alternate current with 230V AC supplementary input for emergency generator or grid supplier. The ALL in ONE inverter is the simplest way to realize a stand alone PV system with automatic switch with the grid (or emergency generator), all the components that usually make up a classic stand alone photovoltaic system (charge controller, inverter, emergency unit and battery chargers). With this inverter you may use renewable sources, hence solar energy, battery stored energy and only in the absence of these two renewable sources, the inverter automatically switches to emergency AC input of the generator or grid supplier. This system allows maximum cost saving in your electricity bill or even eliminating the connection to the grid.
Main features
• Pure sinewave
inverter.
• Support Bluetooth for mobile (Android App available).
• Detachable LCD control module with multiple communications.
• High efficiency pure sine wave inverter (PF=1).
• Wide PV input range (120 V DC - 500V DC) 80A MPPT SCC.
• Intelligent 3 stage 60A AC battery charger to optimize battery performance.
• Surger to 2X continuos power for 5 seconds fir motor loads.
• Built-in MPPT solar charge controller
.
• Selectable input voltage range depending on the applications.
• Configurable AC/Solar input priority via LCD setting.
• Automatic start in the absence of AC current.
INVERTER OUTPUT:
- Rated Power: 3600 VA/3000 W;
- Surge Power: 7200 VA/6000 W;
- Waveform: Pure sine wave;
- AC Voltage Regulation (Batt.Mode): 230 VAC±5%;
- Inverter Efficiency (Peak): 90-93%;
- Transfer Time: 15ms (For Personal Computers) 20ms(For Home Appliances).
AC INPUT:
- Voltage: 230 VAC;
- Selectable Voltage Range: 170~280VAC (For Personal Computers) 90~280VAC (For Home Appliances);
- Frequency Range: 50Hz/60Hz (Auto sensing).
BATTERY:
- Nominal voltage: 24 VDC;
- Floating Charge Voltage: 27 VDC;
- Overcharge Protection: 33 VDC.
SOLAR CHARGER & AC CHARGER:
- Solar charger type: MPPT;
- Maximum PV Array Power: 4000 W;
- MPPT Range @ Operating Voltage: 120~450 VDC;
- Maximum PV Array Open Circuit Voltage: 500 VDC;
- Maximum Solar Charge Current: 120A;
- Maximum AC Charge Current: 100A;
- Maximum Efficiency: 98%.
MECHANICAL SPECIFICATION
- Dimension, WxHxD: 119x313x422 mm;
- Net Weight: 10 kg.
OTHER
- Humidity: 5% to 95% Relative Humidity (Non-condensing);
- Operating Temperature: 10 °C - 50 °C;
- Storage Temperature: -15 °C - 60 °C.
