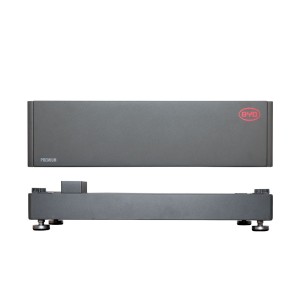

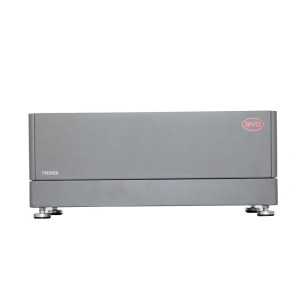

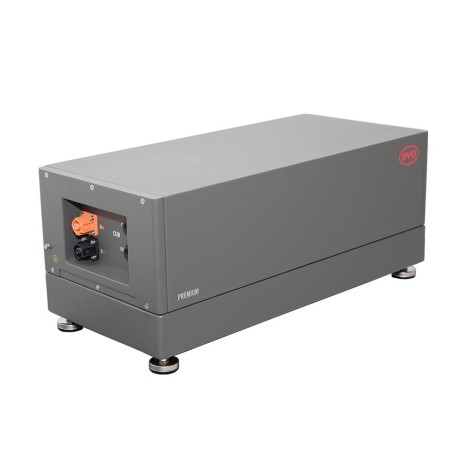

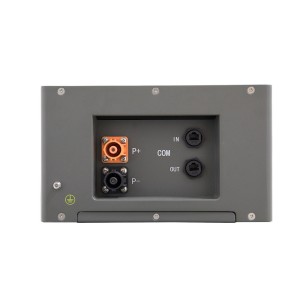

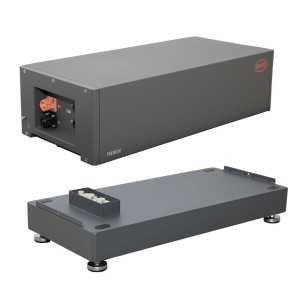

BYD Battery-Box Premium LVS Power Distribution Unit BMS + Base

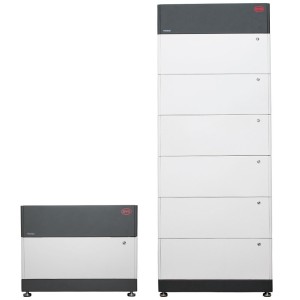

BYD LVS BMS - Battery Management System with base for BYD Battery-Box Premium LVS Storage Lithium Battery Module. A single Battery-Box Premium LVS contains between 1 to 6 battery modules LVS stacked in parallel and can reach 4 to 24.0 kWh usable capacity in one tower. Connect up to 16 Battery-Box LVS 16.0 in parallel for a maximum size of 256 kWh. Ability to scale by adding LVS modules or parallel towers of 1 to 4 modules later.
It can be used with various types of equipment and systems. Suitable for those applications that require limited space, high power and long life. The simplicity and modularity of this system make it an extremely flexible product, with capacity that can also be implemented at a later time. The battery modules can be combined with systems that work ON-Grid, with and without grid back-up, and OFF-Grid.
Features
- Communication: CAN/RS485;
- Operating temperature: -10°C ~ + 50°C;
- Relative humidity: 0% ~ 95%;
- Cooling: Natural convection;
- Enclosure Protection Rating: IP55;
- Cell technology: lithium iron phosphate (LiFePO4);
- Dimensions (H/W/D): 245x650x298 mm;
- Weight: 19 kg.
- Certification: VDE2510-50 / IEC62619 / CEC / CE / UN38.3;
- Applications: ON Grid / ON Grid + Backup / OFF Grid;
- Warranty: 10 years;
- Compatible inverters: BYD Battery-Box Premium LVS.
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
