Reference: N54130200333

Brand: TopSolar

48V 4.8kW Photovoltaic Kit with 5.6kW Inverter & LiFePo4 2x5kW Batteries

(0)
Solar Kit consist of 12 410W monocrystalline silicon photovoltaic panels, TopSolar 48V 6200VA 230V MPPT 120A 500Vdc Hybrid solar inverter, 2 LiFePo4 4.8kWh 48V Pylontech lithium batteries and kid cables for Off-Grid systems with grid support.
€4,496.16 €7,752.00
€7,752.00 €4,496.16 VAT incl.
€7,752.00 €4,496.16 VAT excl.
€7,752.00 €4,496.16 VAT excl.
€7,752.00 €4,496.16 VAT incl.
€7,752.00 €4,496.16 VAT incl.
€0.00 €0.00 Tax
€7,752.00 €4,496.16 VAT excl.
€7,752.00 €4,496.16 VAT excl.
€0.00 €0.00 Tax
€7,752.00 €4,496.16 VAT incl.
More
Last items in stock
In stock: 1
All best sellers
  • PayPal

  • Reduced price
Jinko Solar JKM420N-54HL4-B Full Black 1000V 420W Monocrystalline Module +36
  • Jinko Solar JKM420N-54HL4-B Full Black 1000V 420W Monocrystalline Module +36
  • Jinko Solar JKM420N-54HL4-B Full Black 1000V 420W Monocrystalline Module +36
  • Jinko Solar JKM420N-54HL4-B Full Black 1000V 420W Monocrystalline Module +36
  • Jinko Solar JKM420N-54HL4-B Full Black 1000V 420W Monocrystalline Module +36

Jinko Solar JKM420N-54HL4-B Full Black 1000V 420W Monocrystalline Module +36

N151030050302-36
Jinko

Jinko Solar Tiger Neo N-Type 420W monocrystalline photovoltaic module with multi busbar technology and Hot 2.0 technology, 21.51% efficiency for domestic and industrial photovoltaic systems, photovoltaic parks, etc. 36 pcs pallet.

€118.00
€64.90 Save 45%
VAT excluded
Shipping from EU warehouse in 10 working days

Select VAT rate according to your needs. If you select 10% VAT you must send the signed declaration otherwise we will not be able to ship the goods. Only for shipments to Italy.


* SELEZIONA IVA

Quantity
In Stock

The minimum purchase order quantity for the product is 36.

Description

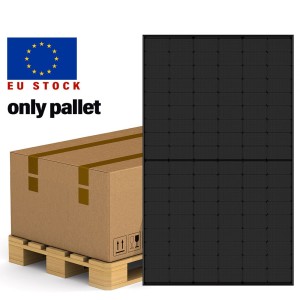

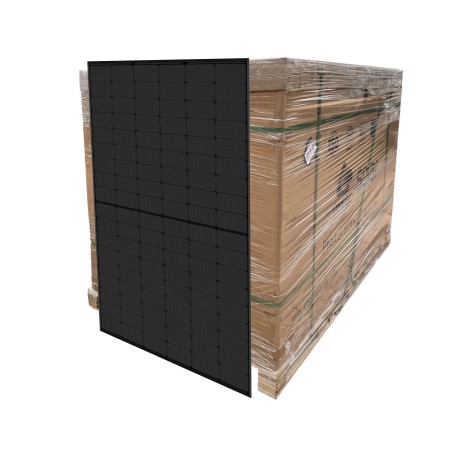

Price for 36 + panels

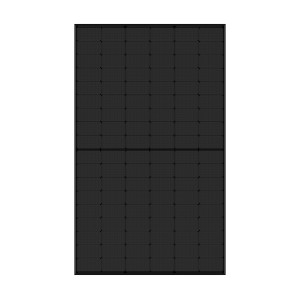

Jinko 420W 32.04Vmp JKM420N-54HL4-B Full Black 1000V Full Black Monocrystalline Photovoltaic Module

The Jinko Solar Tiger Neo N-Type is a 420 W solar panel with monocrystalline cells and N-Type technology. The solar cells use the super multi busbar technology. With this, the loss by microcracks is efficiently reduced, the current transmission path is reduced by 50% and the cell efficiency is improved. The module is made with Hot 2.0 technology. The Jinko solar module is for use under wind and snow loads of 2400-5400 Pa. certified and has a high resistance to salt and ammonia. It has a low-iron, hardened front glass with high light transmission, has a thickness of 3.2mm and has an anti-reflective coating. The frame is made of anodized aluminum alloy.

• Super multi-busbar technology
• Hot 2.0 technology
• PID resistance (Excellent anti-PID performance guarantee thanks to optimized mass production processes and material control)
• Positive power tolerance of 0~+3%
• Improved mechanical resistance to external influences
• Improved performance in low light
• Manufacturer product guarantee: 15 years

N-type technology
Compared to P-type products, N-type cells, which are used with a different doping technology, perform better in terms of power dissipation. The significant increase in the bifacial factor and the optimization of the operating temperature also bring a higher performance gain. When it comes to the LCOE value (levelized cost of electricity), the analysis result has been significantly reduced compared to conventional P-type modules.

HOT 2.0 technology
Efficient passivation contact technology is applied in HOT 2.0 cells, which updates micro-nano tunneling through the oxide layer and carrier-selective lamination of microcrystalline silicon thin films on the back side. This advanced structure contributes to better passivation performance and electrical conductivity, increasing cell efficiency and power generation performance. Under the conditions of mass production, the maximum efficiency of the N-type HOT2.0 cell is over 21% and has a wide application perspective in the near future.

Super multi busbar technology
Busbars are located on each PV module. These are busbars that are firmly printed on each solar cell. They absorb the generated direct current and lead it to the busbars. By using more busbars, Jinko reduces shadowing, shortens transport routes and lowers resistance in the modules.

Specification:
Model: JKM420N-54HL4-B Full Black 1000V;
Nominal Power: 420 W;
Cell Type: N-Type Monocrystalline;
Number of cells in series: 108 (6x18);
Open-circuit Voltage (Voc): 38.15 V;
Maximum Power Voltage (Vmp): 32.04 V;
Short-circuit Current (Isc): 13.80 A;
Maximum Power Current (Imp): 13.11 A;
Max System Voltage: 1000 V DC;
Output tolerance: 0/+3%;
Module Efficiency: 21.51 %;
Frame: anodizedaluminium alloy;
Dimension: 1722x1134x30 mm;
Weight: 22 kg.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.

Product Details
N151030050302-36

Specific References

EAN13
8025223332808
MPN
N151030050302-36
Attachments
Download
Datasheet Jinko 400-420

Jinko Solar 420W N-Type Tiger Neo Full Black Monocrystalline Panel

Download (337.81KB)
Comments (0)
Grade
No customer reviews for the moment.
