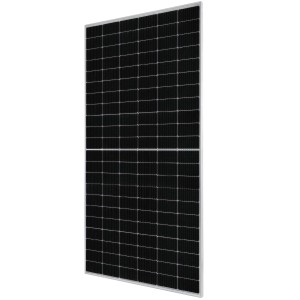

JA SOLAR JAM54D40-440N-GB-B 440 Wp monocrystalline photovoltaic module
The 440 Wp solar module is a high-efficiency monocrystalline black-white frame solar module with N-type bifacial double glass, multi-busbar and half-cut cell technologies. The half-cut cells with additional multibusbar technology increase the efficiency of the cell. In this way they achieve another 2 - 2.5% more performance and can therefore offer maximum reliability. Up to 22% efficiency thanks to superior technology cells and state-of-the-art manufacturing methods. Over decade cell production experience rectangular by most of module manufacturers 5G enhanced manufactory. High performance under low light conditions (Cloudy days, mornings and evenings). Manufactured according to International Quality, Health and Safety, Environmental Management Systems (ISO9001, ISO14001, ISO45001). IEC 62941: 2019 Terrestrial photovoltaic (PV) modules - Quality system for PV module manufacturing.
Superior Manufacturing-Quality Assurance
TQC & SPC quality, control systems, Advanced cell sorting to avoid electric mismatch, 100% twice EL tests. Durable, high-quality, Rigid construction: 5400Pa & 2400Pa rated assembly. 25 Years product warranty, 30 Years power output warranty.
• Higher power generation better LCOE
• N-Type with very Lower LID
• Better Temperature Coefficient
• Better low irradiance response
• Less shading and lower resistive loss
• Better mechanical loading tolerance

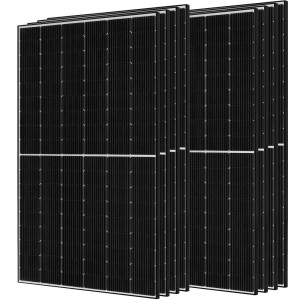

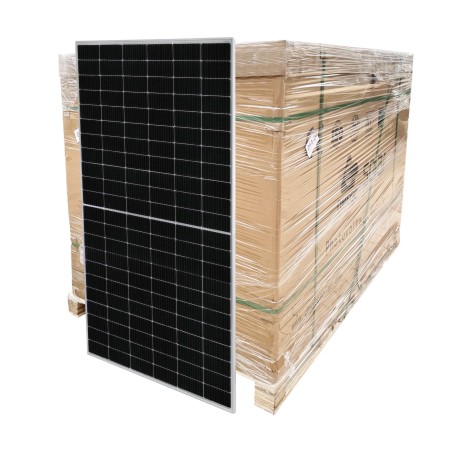

Price for +36 panels.

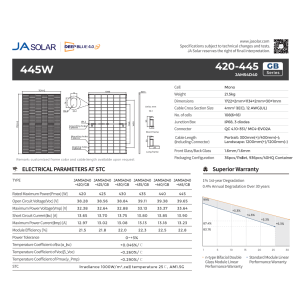

Specification:
Model: JAM54D40-440N-LB-B;
Nominal Power: 440 Wp;
Cell Type: Mono-16BB Monocrystalline;
Number of cells in series: 108 (6x18);
Open-circuit Voltage (Voc): 38.90 V;
Maximum Power Voltage (Vmp): 32.47 V;
Short-circuit Current (Isc): 14.31 A;
Maximum Power Current (Imp): 13.55 A;
Max System Voltage: 1500 V DC;
Output tolerance: 0/+5%;
Module Efficiency: 22 %;
Cables: 4mm² (IEC) 12 AWG (UL);
Frame: Aluminium;
Front glass/Back glass: 1,6 mm/1,6 mm;
Connector: MC4-EVO2A/QC 4.10-351;
Dimension: 1722x1134x30 mm;
Weight: 22 kg.
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
