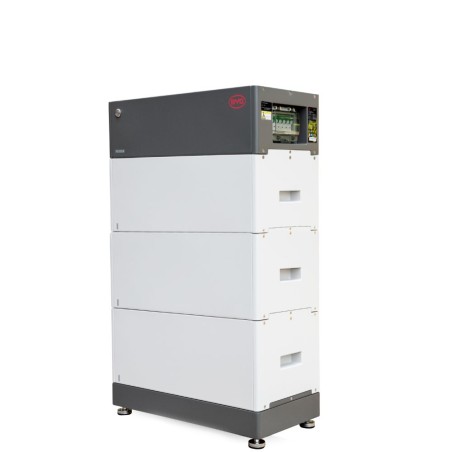

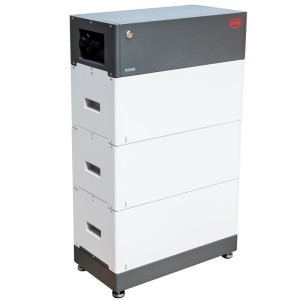

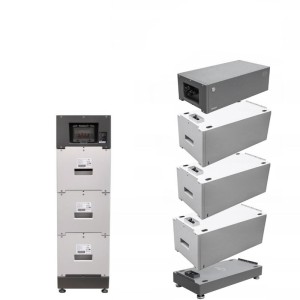

BYD Battery-Box Premium HVS 7.7 7.68kWh 3 lithium Box-Batteries with BMS

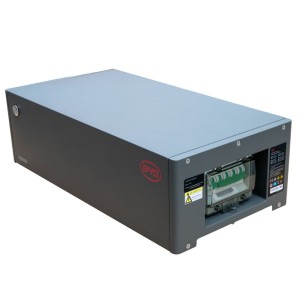

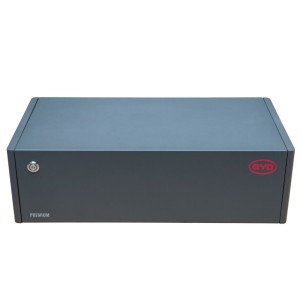

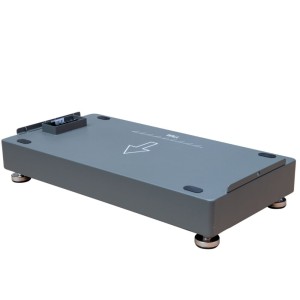

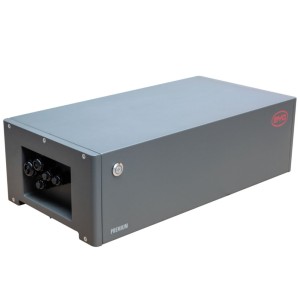

The Battery-Box Premium HVS is made of 3 high voltage lithium batteries connected in series, the 2.56 kWh 102.4 V each one BMS control module and the battery module support base to obtain a usable capacity of 7.68 kWh. The parallel connection of up to 3 identical Battery-Box Premium HVM towers allows a maximum capacity of 38.4 kWh. Additionally, this model offers the ability to scale by adding HVS modules or parallel HVS towers at any time.
• Capable of High-Powered Emergency-Backup and Off-Grid Functionality
• Highest Efficiency Thanks to a Real High-Voltage Series Connection
• The Patented Modular Plug Design Requires no Internal Wiring and Allows for Maximum Flexibility and Ease of Use
• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle, and Power
• Compatible with Leading 1 and 3 Phase High Voltage Battery Inverters
• Two Distinct Modules to Cover the Complete Range of System Sizes
• Highest Safety Standards like VDE 2510-50
Lithium iron phosphate batteries are the safest batteries on the market.
- The maximum working temperature is the one released in case of damage to the battery and is the lowest temperature among the different chemistries of lithium ion batteries.
NOTE: The BYD HVS battery is composed of a minimum of 2 HVS + BMS modules to a maximum of 5 HVS + BMS modules.
Features
Model: HVS 7.7;
Battery module: HVS (2.56 kWh, 102.4 V, 38 kg);
Number of modules: 3;
Available Energy: 7.68 kWh;
Maximum Output Current: 25 A;
Peak Output Current: 50 A, 5s;
Rated Voltage: 307.2 V;
Operating Voltage: 240~360 V;
Dimensions (H/W/D): 995x585x298 mm;
Weight: 129 kg.
